Sản phẩm > Mũi phay bậc

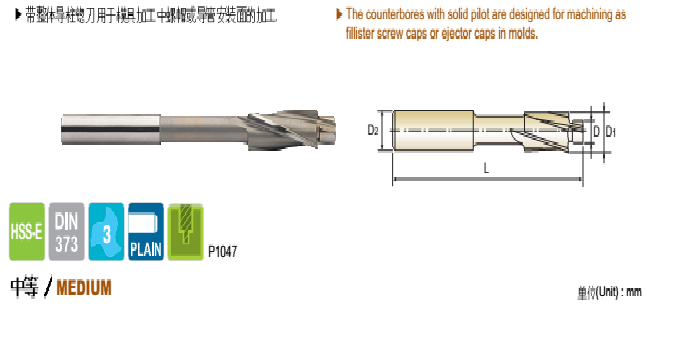

MEDIUM

EDP No ITEM No Screw
Size		 Pilot
 Diameter		 Cutter
 Diameter		 Shank
 Diameter		 Overall
 Length
PLAIN PLAIN D(e8) D1(z9) D2(h9) L
EL950003 YG54M3-M M3 3.4 6.0 5 71
EL950035 YG54M3.5-M M3.5 3.9 6.5 5 71
EL950004 YG54M4-M M4 4.5 8.0 5 71
EL950005 YG54M5-M M5 5.5 10.0 8 80
EL950006 YG54M6-M M6 6.6 11.0 8 80
EL950008 YG54M8-M M8 9.0 15.0 12.5 100
EL950010 YG54M10-M M10 11.0 18.0 12.5 100
EL950012 YG54M12-M M12 14.0 20.0 12.5 100



FINE

EDP No ITEM No Screw
Size		 Pilot
 Diameter		 Cutter
 Diameter		 Shank
 Diameter		 Overall
 Length
PLAIN PLAIN D(e8) D1(z9) D2(h9) L
EL950901 YG54M3-F M3 3.2 6.0 6 71
EL950902 YG54M3.5-F M3.5 3.7 6.5 6.5 71
EL950903 YG54M4-F M4 4.3 8.0 8 71
EL950904 YG54M5-F M5 5.3 10.0 10 80
EL950905 YG54M6-F M6 6.4 11.0 11 80
EL950906 YG54M8-F M8 8.4 15.0 15 100
EL950907 YG54M10-F M10 10.5 18.0 18 100
EL950908 YG54M12-F M12 13.0 20.0 20 100



BEFORE THREADING

EDP No ITEM No Screw
Size		 Pilot
 Diameter		 Cutter
 Diameter		 Shank
 Diameter		 Overall
 Length
PLAIN PLAIN D(e8) D1(z9) D2(h9) L
EL950909 YG54M3-T M3 2.5 6.0 5 71
EL950910 YG54M3.5-T M3.5 2.9 6.5 5 71
EL950911 YG54M4-T M4 3.3 8.0 5 71
EL950912 YG54M5-T M5 4.2 10.0 8 80
EL950913 YG54M6-T M6 5.0 11.0 8 80
EL950914 YG54M8-T M8 6.8 15.0 12.5 100
EL950915 YG54M10-T M10 8.5 18.0 12.5 100
EL950916 YG54M12-T M12 10.2 20.0 12.5 100

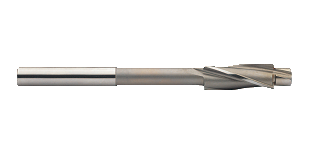

Mũi phay bậc
Nội dung đang cập nhật...
