Sản phẩm > Collet Dùng Cho Dầu Cặp BT loại ER

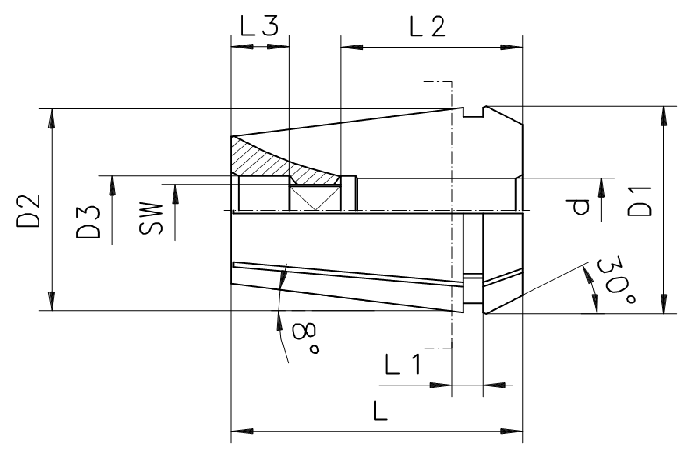

| Collet ER được dùng một loạt các công dụng bao gồm cả khoan, phay, tarô và nghiền. |
| Modeo |
L |
L1 |
D1 |
D2 |
d-max |
Range |
Clamping Range |
| ER11 |
18.0 |
2.0 |
11.5 |
11.0 |
7.0 |
0.5 |
0.5-7.0 |
| ER16 |
27.5 |
2.7 |
17.0 |
16.0 |
10.0 |
1.0 |
1.0-10.0 |
| ER20 |
31.5 |
2.8 |
21.0 |
20.0 |
13.0 |
1.0 |
2.0-13.0 |
| ER25 |
34.0 |
3.1 |
26.0 |
25.0 |
16.0 |
1.0 |
2.0-16.0 |
| ER32 |
40.0 |
3.6 |
33.0 |
32.0 |
20.0 |
1.0 |
3.0-20.0 |
| ER40 |
46.0 |
4.1 |
41.0 |
40.0 |
26.0 |
1.0 |
4.0-26.0 |
| ER50 |
60.0 |
5.1 |
52.0 |
50.0 |
34.0 |
2.0 |
10.0-34.0 |
Unit: mm
| ER08 | ER11 | ER16 | ER20 |
|---|
| No. | Range | No. | Range | No. | Range | No. | Range |
|---|
| ER08-01 |
1.0 |
ER11-01 |
1.0 |
ER16-01 |
1.0~0.5 |
ER20-01 |
1.0~0.5 |
| ER08-1.5 |
1.5 |
ER11-1.5 |
1.5 |
ER16-1.5 |
1.5~1.0 |
ER20-1.5 |
1.5~1.0 |
| ER08-02 |
2.0~1.5 |
ER11-02 |
2.0~1.5 |
ER16-02 |
2.0~1.0 |
ER20-02 |
2.0~1.0 |
| ER08-2.5 |
2.5~2.0 |
ER11-2.5 |
2.5~2.0 |
ER16-2.5 |
2.5~2.0 |
ER20-2.5 |
2.5~2.0 |
| ER08-03 |
3.0~2.5 |
ER11-03 |
3.0~2.5 |
ER16-03 |
3.0~2.0 |
ER20-03 |
3.0~2.0 |
| ER08-3.5 |
3.5~3.0 |
ER11-3.5 |
3.5~3.0 |
ER16-3.5 |
3.5~3.0 |
ER20-3.5 |
3.5~3.0 |
| ER08-04 |
4.0~3.5 |
ER11-04 |
4.0~3.5 |
ER16-04 |
4.0~3.0 |
ER20-04 |
4.0~3.0 |
| ER08-4.5 |
4.5~4.0 |
ER11-4.5 |
4.5~4.0 |
ER16-4.5 |
4.5~4.0 |
ER20-4.5 |
4.5~4.0 |
| ER08-05 |
5.0~4.5 |
ER11-05 |
5.0~4.5 |
ER16-05 |
5.0~4.0 |
ER20-05 |
5.0~4.0 |
| |
|
ER11-5.5 |
5.5~5.0 |
ER16-5.5 |
5.5~5.0 |
ER20-5.5 |
5.5~5.0 |
| |
|
ER11-06 |
6.0~5.5 |
ER16-06 |
6.0~5.0 |
ER20-06 |
6.0~5.0 |
| |
|
ER11-6.5 |
6.5~6.0 |
ER16-6.5 |
6.5~6.0 |
ER20-6.5 |
6.5~6.0 |
| |
|
ER11-07 |
7.0~6.5 |
ER16-07 |
7.0~6.0 |
ER20-07 |
7.0~6.0 |
| |
|
|
|
ER16-7.5 |
7.5~7.0 |
ER20-7.5 |
7.5~7.0 |
| |
|
|
|
ER16-08 |
8.0~7.0 |
ER20-08 |
8.0~7.0 |
| |
|
|
|
ER16-8.5 |
8.5~8.0 |
ER20-8.5 |
8.5~8.0 |
| |
|
|
|
ER16-09 |
9.0~8.0 |
ER20-09 |
9.0~8.0 |
| |
|
|
|
ER16-9.5 |
9.5~9.0 |
ER20-9.5 |
9.5~9.0 |
| |
|
|
|
ER16-10 |
10~9.0 |
ER20-10 |
10~9.0 |
| |
|
|
|
|
|
ER20-10.5 |
10.5~10 |
| |
|
|
|
|
|
ER20-11 |
11~10 |
| |
|
|
|
|
|
ER20-11.5 |
11.5~11 |
| |
|
|
|
|
|
ER20-12 |
12~11 |
| |
|
|
|
|
|
ER20-12.5 |
12.5~12 |
| |
|
|
|
|
|
ER20-13 |
13~12 |
| ER25 | ER32 | ER40 | ER50 |
|---|
| No. | Range | No. | Range | No. | Range | No. | Range |
|---|
| ER25-02 |
2.0~1.0 |
ER32-02 |
2.0~1.0 |
ER40-03 |
3.0~2.0 |
ER50-12 |
12~10 |
| ER25-03 |
3.0~2.0 |
ER32-03 |
3.0~2.0 |
ER40-04 |
4.0~3.0 |
ER50-14 |
14~12 |
| ER25-04 |
4.0~3.0 |
ER32-04 |
4.0~3.0 |
ER40-05 |
5.0~4.0 |
ER50-16 |
16~14 |
| ER25-05 |
5.0~4.0 |
ER32-05 |
5.0~4.0 |
ER40-06 |
6.0~5.0 |
ER50-18 |
18~16 |
| ER25-06 |
6.0~5.0 |
ER32-06 |
6.0~5.0 |
ER40-07 |
7.0~6.0 |
ER50-20 |
20~18 |
| ER25-07 |
7.0~6.0 |
ER32-07 |
7.0~6.0 |
ER40-08 |
8.0~7.0 |
ER50-22 |
22~20 |
| ER25-08 |
8.0~7.0 |
ER32-08 |
8.0~7.0 |
ER40-09 |
9.0~8.0 |
ER50-24 |
24~22 |
| ER25-09 |
9.0~8.0 |
ER32-09 |
9.0~8.0 |
ER40-10 |
10~9.0 |
ER50-26 |
26~24 |
| ER25-10 |
10~9.0 |
ER32-10 |
10~9.0 |
ER40-11 |
11~10 |
ER50-28 |
28~26 |
| ER25-11 |
11~10 |
ER32-11 |
11~10 |
ER40-12 |
12~11 |
ER50-30 |
30~28 |
| ER25-12 |
12~11 |
ER32-12 |
12~11 |
ER40-13 |
13~12 |
ER50-32 |
32~30 |
| ER25-13 |
13~12 |
ER32-13 |
13~12 |
ER40-14 |
14~13 |
ER50-34 |
34~32 |
| ER25-14 |
14~13 |
ER32-14 |
14~13 |
ER40-15 |
15~14 |
|
|
| ER25-15 |
15~14 |
ER32-15 |
15~14 |
ER40-16 |
16~15 |
|
|
| ER25-16 |
16~15 |
ER32-16 |
16~15 |
ER40-17 |
17~16 |
|
|
| |
|
ER32-17 |
17~16 |
ER40-18 |
18~17 |
|
|
| |
|
ER32-18 |
18~17 |
ER40-19 |
19~18 |
|
|
| |
|
ER32-19 |
19~18 |
ER40-20 |
20~19 |
|
|
| |
|
ER32-20 |
20~19 |
ER40-21 |
21~20 |
|
|
| |
|
|
|
ER40-22 |
22~21 |
|
|
| |
|
|
|
ER40-23 |
23~22 |
|
|
| |
|
|
|
ER40-24 |
24~23 |
|
|
| |
|
|
|
ER40-25 |
25~24 |
|
|
| |
|
|
|
ER40-26 |
26~25 |
|
|
- (Suggested clamping range should be 0.5mm)
