| Product Description: |

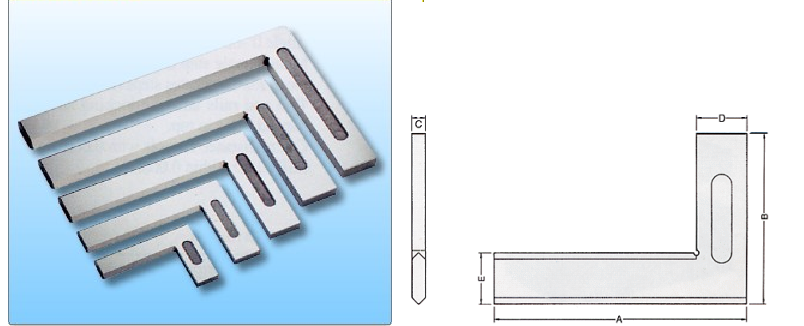

This square is made by a single piece of fully seasoned tool steel. Beams and blades are ground and accurately lapped for straightness and parallelism. Squares have acurrate right angles both inside and outside.
| Material | S 50C |
| Parallelism | Within (2+A/100)mm/100mm |
| Harden treatment up to HRC 60 | |
| To: Subzero treatment | |
| 25.4mm mm |
| MODEL | A | B | C | D | E | N.W |
| TX-304 | 100 | 70 | 8 | 25 | 25 | 0.2kg |
| TX-306 | 150 | 100 | 8 | 30 | 30 | 0.35kg |
| TX-308 | 200 | 130 | 10 | 35 | 35 | 0.7kg |
| TX-310 | 250 | 160 | 12 | 40 | 40 | 0.12kg |
| TX-312 | 300 | 200 | 15 | 40 | 40 | 1.7kg |
