Sản phẩm > PF-8016S, PF-8032S, PF-8050S

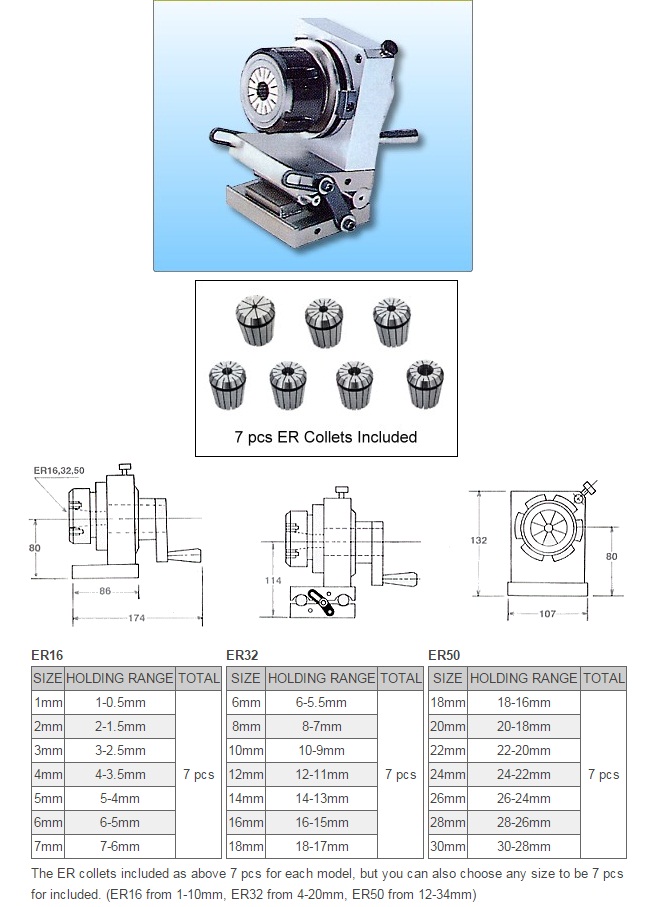

1. The ER COLLET TYPE is a punch former of highest accuracy, the roundness reach go 0.005mm.
2. It is for punch grinding and part of round steel bar grinding, it can be hold a punch or steel bar withhigh accuracy easily.
3. It can divide into 24 angles, each angle at the tolerance in ±10 seconds.
4. EPF-S with a sine plate for adjust an angle to work.
| MODEL | ER COLLET TYPE |
THROUGH CENTER HOLE |
IN DEXNG IVISION |
ROUNDN ESS |
N.W |
| PF-8016 | ER16 7pcs | Þ20mm | each 15° | 0.005mm | 8.4kg |
| PF-8032 | ER32 7pcs | Þ20mm | ± 10 seconds | 9.9kg | |
| PF-8050 | ER50 7pcs | Þ30mm | for 24 angles | 10.2kg |
PF-8016S, PF-8032S, PF-8050S
