| FEATURES: |

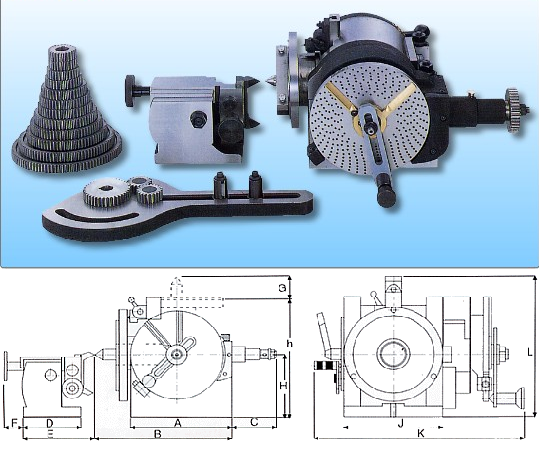

| The Universal Dividing Head can be used for simple dividing and also for producing worms, by use of the change gears and gar quadrant. A particular feature of the design is 55.5mm through bore and MT6 taper. Further more the unit can also be tilted from 0-90 degree. |
| The Spindle, Worm and Gear are made from a high grade steel, hardened and ground for high accuracy and durability. |
| The Tail Stock is designed with a dovetail construction for high rigidity and can be adjusted in each direction to achieve the correct alignment. |
| The Worm and Gear provide a reduction ratio of 40:1 and the unit is supplied with a double sided Dividing Plate. |
| Providing divisions on face A of 24, 25, 30, 34, 37, 39, 41, 42, 43. and on face B of 46, 47, 49, 51, 53, 54, 57, 58, 59, 62, 66. |
| The change Gears supplied are 24, 28, 32, 38, 40, 44, 48, 56, 64, 72, 86, 100 teeth thus a very wide and comprehensive range of indexing is achievable. |
| Each Universal Dividing Head is supplied complete with center carrier, change gear quadrant, set of changing gears, Tail Stock and Dividing Plate. |
| MODEL | A | B | C | D | E | F | G | H | h | J | K | L | N.W. |
| CM-2 | 242 | 322 | 152 | 166 | 198 | 50 | 52 | 146 | 278 | 194 | 465 | 290 | 132kg |
| 9-9/16 | 12-11/12 | 6 | 6-17/32 | 7-25/32 | 1-15/16 | 2-1/16 | 5-3/4 | 10-15/16 | 7-5/8 | 18-5/16 | 11-13/32 |
