Sản phẩm > Đầu Chia Độ BS-2
| FEATURES: | |
| 1 | The Universal dividing Head has been designed to carry out all types of gear cutting. Precision dividing and spiral work (except type BS-0 and BS-1) with greater precision and efficiency than has been possible before. |
| 2 | The center face can be tilted from a horizontal position of 90 ¢F X down to-10 ¢F X from vertical and inclinations can be read off a scale graduated in degree. The center is built to highest engineering standards and is factory inspected and tested to assure complete satisfaction. |
| Dividing Plate | Number of holes | |||||
| 1 | 2 | 3 | 4 | 5 | 6 | |
| Plate A | 15 | 16 | 17 | 18 | 19 | 20 |
| Plate B | 21 | 23 | 27 | 29 | 31 | 33 |
| Plate C | 37 | 39 | 41 | 43 | 47 | 49 |

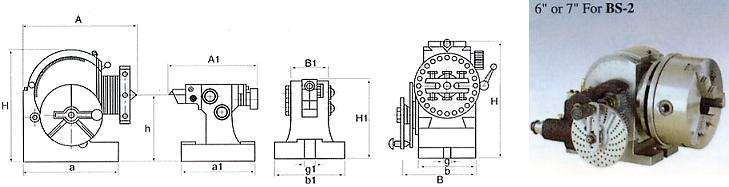

| MODEL | A | B | H | h | a | b | g | B1 | ||||||||
| BS-2 | 365 | 14-13/32 | 272 | 10-45/64 | 236 | 9/19/1964 | 132.7 | 5/15/1964 | 213 | 8/25/1964 | 134 | 5/9/1932 | 16 | 8-May | 88 | 3/1/2002 |
| MODEL | A1 | H1 | a1 | b1 | g1 | Taper of | N.W. | |||||
| Center | ||||||||||||
| BS-2 | 205-255 | 8-5/64~10-3/64 | 139 | 4/15/1932 | 175 | 6-57/64 | 124 | 4/7/2008 | 16 | 8-May | B&S No.10 | 73kg |
Đầu Chia Độ BS-2
