| FEATURES: |
| The Simple Indexing Spacer can be mounted on milling and drilling machines and other machine tool where an indexing facility is required. The 3 jaw chucks of both the CC-6 and C-8 models have a flange through bores of 44mm and 63mm respectively. |
| These indexing spacer are designed for use in horizontal or vertical positions. The master indexing plate has 24 divisions and is permanently fixed inside the indexer. Division of 2,3,4,6,8,12 can also be achieved by use of the sub-plates. |
| OPTIONAL ACCESSORIES |
| TAIL STOCK | 3-JAW CHUCK |
| TS-4 for CC-6 | 6 for CC-6 |
| TS-5 for CC-8 | 8 for CC-8 |

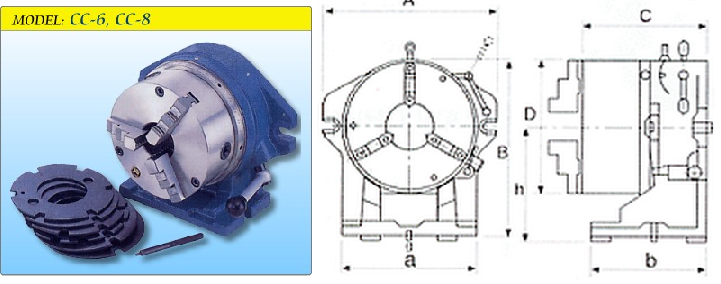

| MODEL | Dividing Number | A | B | C | D | a | b | h | g | Inner jaw | Outer jaw | Diameter of hole (chuck) | Diameter of hole (turret) | N.W. |
| CC-6 | 2, 3, 4, 6 | 260 | 218 | 156.2 | 167 | 220 | 130 | 130 | 16 | Apr-42 | 10-156 | 44 | 36 | 32kg |
| CC-8 | 8, 12, 14 | 312 | 257 | 173.3 | 210 | 258 | 148 | 149.25 | 16 | Apr-62 | 10-180 | 63 | 63 | 55kg |
