| FEATURES: |

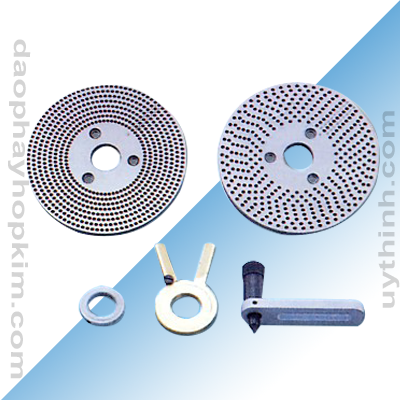

| The Dividing Plate Set consists of 2 indexing plates, a sector and a handle with plunger. Using these Dividing Plate the indexing of 2 to 100 divisions can be attained quickly and accurately. |
| Number of holes of Dividing Plates |
| DP-1 | Plate A | 15, 16, 17, 18, 19, 20 |
| Plate B | 21, 23, 27, 29, 31, 33 | |
| Plate C | 37, 39, 41, 43, 47, 49 | |
| DP-2,3 | Plate A | 26, 28, 30, 32, 34, 37, 38, 39, 41, 43, 44, 46, 47, 49, 51, 53, 57, 59 |
| Plate B | 61, 63, 67, 69, 71, 73, 77, 79, 81, 83, 87, 97, 91, 93, 97, 99 | |
| DP-4 | Plate A | 26, 28, 30, 32, 34, 41, 43, 44, 46, 47, 49, 51, 53, 57, 59 |
| DP-5 | Plate B | 61, 63, 67, 69, 71, 73, 77, 79, 81, 83, 87, 89, 91, 93, 97, 99 |
| MODEL | Suitable for | Dividing plate set screw | Inner diameter of sector arm | Outer diameter of spring clip | Grove width in handle plate | N.W. |
| DP-1 | HHT-150, HHV-150 | PCD 32Ø | 21 | 18 | 9 | 2.5kg |
| DP-2 | HHT-200,250 HHV-200,250 | PCD 46 x 3 | 28.7 | 44 | 9 | 4.0kg |
| DP-3 | HHT-300,350 HHV-300,350,400 | PCD 46 x 3 | 28.7 | 44 | 9 | 4.0kg |
