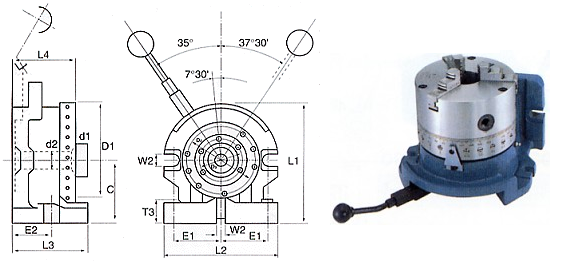

MODEL | C | D1 | d1 | d2 | E1 | E2 | L1 | L2 | L3 | L4 | T3 | W2 |
SD-7 | 135 | 192 | 70 | 56 | 117.5 | 70 | 265 | 260 | 160 | 115 | 22 | 16 |
5-5/16 | 7-9/16 | 2-3/4 | 2-1/4 | 4-5/8 | 2-3/4 | 10-3/8 | 10-1/4 | 6-1/4 | 4-1/2 | 7/8 | 5/8 |
Easy Selection of Dividing Positions | One Action Positioning |
The division are easily and quickly to set by simply turning the Selector Pins through half a turn a screw driver. | Only one hand is required to unclamp index and clamp the table due to the unique design. Lever action is light and quick. |
Operation | Clamp Force Adjustment |
Set the divisions by turning the required Selector pins through half a turn with a screw driver. | Turn the divider to view the underside. |
Moving the Lever clockwise will unclamp the table and rotate it to the next selected division. | Lossen the 4 bolts in the slotted holes and rotate the plate in(+) direction too increase clamping force or in(-) direction to reduce the clamp force. |
The table will be stopped at the division by the plunger. | Place Lever in unclamped position and rotate the Table by hand to check the amount of clamping force on the table. |
The table is clamped when the Lever is returned to its original position. | When the required clamping force has been set tighten the 4 screws. |
CAUTION: |
Do not move the Lever until the Divider has been fitted on the machine table. The lever can only be operated once the unit is clamped firmly on the machine. |
Always return the Lever to the clamped position after each movement to prevent jamming. |
Do not force the Lever, if it be jammed through mis-operation, simply turn the Selector Pin to the passing position in order to free the Lever. |
Do not commence machining until the plunger has stopped the Table form rotating and the Lever has been returned to the clamping position. |
