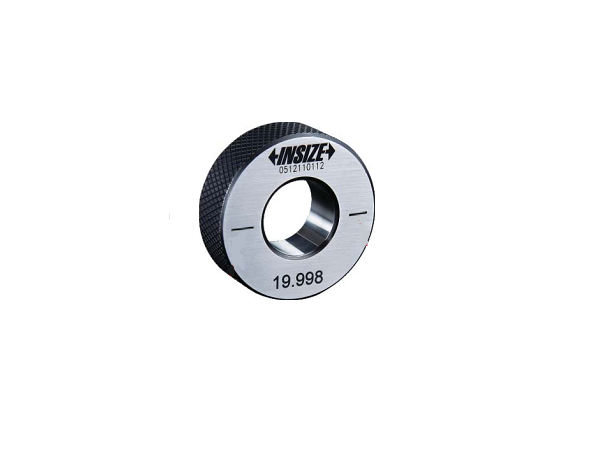

Sản phẩm > Vòng Thiết Lập 6312 - 20
| For zero setting of inside micrometers, three points internal micrometers |
| and bore gages |
| Deviation (difference between the ordered size and the size marked on |
| the setting ring when supplied): |
| Ø3-100mm: ±3µm |
| 100-300mm: ±5µm |
| For example, the ordered size is Ø10.125mm, the size marked on the |
| setting ring when supplied may be Ø10.128mm |

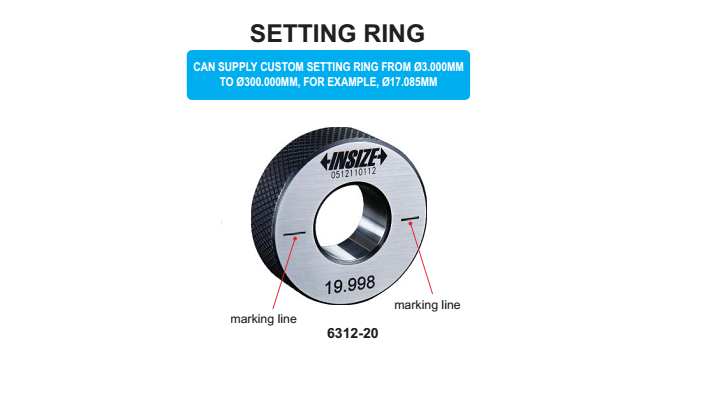

| Accuracy (the accuracy of the size marked on the setting ring, which is |
| checked on direction of the marking line) |
| 3-100mm: ±1µm |
| Ø100-250mm: ±2µm |
| Ø250-300mm: ±2.5µm |
| Cylindricity: |
| Ø3-100mm: ±1µm |
| Ø100-250mm: ±2µm |
| Ø250-300mm: ±2.5µm |
| Code | Nominal Size | Code | Nominal Size | Code | Nominal Size | ||
| 6312-3 | Ø3mm | 6312-17 | Ø17mm | 6312-31 | Ø31mm | ||
| 6312-4 | Ø4mm | 6312-18 | Ø18mm | 6312-32 | Ø32mm | ||
| 6312-5 | Ø5mm | 6312-19 | Ø19mm | 6312-33 | Ø33mm | ||
| 6312-6 | Ø6mm | 6312-20 | Ø20mm | 6312-34 | Ø34mm | ||
| 6312-7 | Ø7mm | 6312-21 | Ø21mm | 6312-35 | Ø35mm | ||
| 6312-8 | Ø8mm | 6312-22 | Ø22mm | 6312-36 | Ø36mm | ||
| 6312-9 | Ø9mm | 6312-23 | Ø23mm | 6312-37 | Ø37mm | ||
| 6312-10 | Ø10mm | 6312-24 | Ø24mm | 6312-38 | Ø38mm | ||
| 6312-11 | Ø11mm | 6312-25 | Ø25mm | 6312-39 | Ø39mm | ||
| 6312-12 | Ø12mm | 6312-26 | Ø26mm | 6312-40 | Ø40mm | ||
| 6312-13 | Ø13mm | 6312-27 | Ø27mm | 6312-41 | Ø41mm | ||
| 6312-14 | Ø14mm | 6312-28 | Ø28mm | 6312-42 | Ø42mm | ||
| 6312-15 | Ø15mm | 6312-29 | Ø29mm | 6312-43 | Ø43mm | ||
| 6312-16 | Ø16mm | 6312-30 | Ø30mm | 6312-44 | Ø44mm |
| Code | Nominal Size | Code | Nominal Size | |
| 6312-45 | Ø45mm | 6312-87 | Ø87mm | |
| 6312-46 | Ø46mm | 6312-90 | Ø90mm | |
| 6312-47 | Ø47mm | 6312-95 | Ø95mm | |
| 6312-48 | Ø48mm | 6312-100 | Ø100mm | |
| 6312-49 | Ø49mm | 6312-125 | Ø125mm | |
| 6312-50 | Ø50mm | 6312-150 | Ø150mm | |
| 6312-55 | Ø55mm | 6312-175 | Ø175mm | |
| 6312-60 | Ø60mm | 6312-200 | Ø200mm | |
| 6312-62 | Ø62mm | 6312-225 | Ø225mm | |
| 6312-65 | Ø65mm | 6312-250 | Ø250mm | |
| 6312-70 | Ø70mm | 6312-275 | Ø275mm | |
| 6312-75 | Ø75mm | 6312-300 | Ø300mm | |
| 6312-80 | Ø80mm | |||
| 6312-85 | Ø85mm | |||
