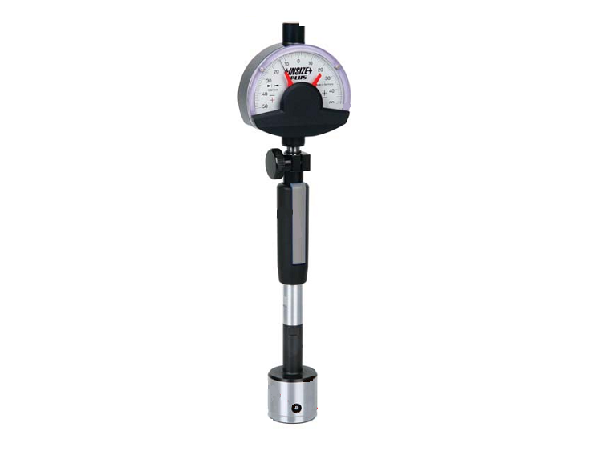

Sản phẩm > Thước Đo Panme Đo Lỗ Khoan Cắm
| Range |
2-3 |
3.1-4 |
4.1-6 |
6.1-9 |
9.1-12 |
12.1-20 |
20.1-40 |
40.1-60 |
60.1-130 |

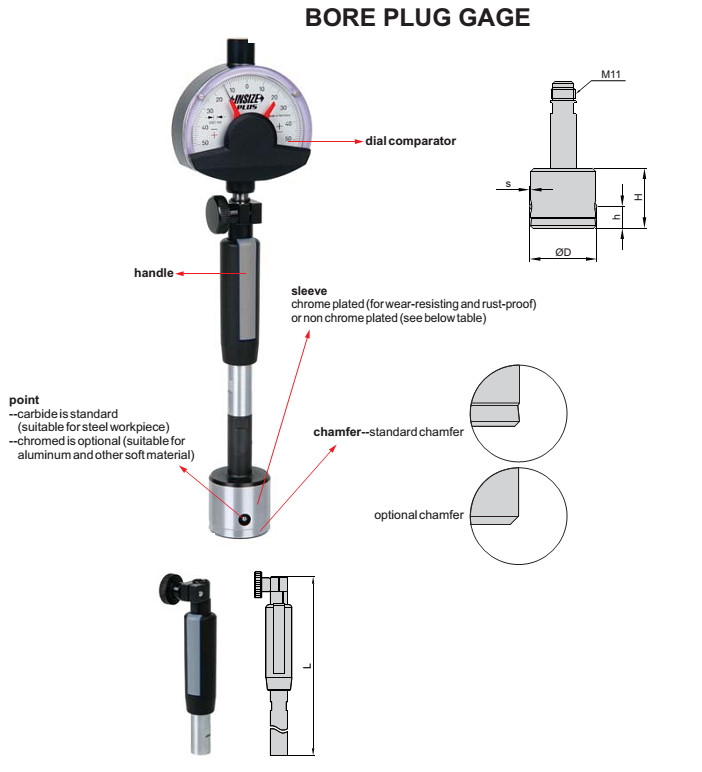

| Travel of point (s) |
0.15 |
0.15 |
0.15 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
Height of point
(n) |
standard |
1 |
1.5 |
1.5 |
2.5 |
2.5 |
2.5 |
3.5 |
3.5 |
4 |
| for through bores |
— |
6 |
6 |
6 |
10 |
10 |
10 |
10 |
10 |
| for blind bores |
0.7 |
1 |
1 |
1 |
1 |
1 |
1.2 |
1.2 |
1.2 |
| Height of sleeve (H) |
17.5 |
26 |
10 |
15 |
15 |
15 |
20 |
28 |
33 |
| Repeatability (µm) |
1 |
1 |
1 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
1 |
| Code |
Type |
| 4653-A |
standard, non chrome plated sleeve |
| 4653-B |
for through bores, non chrome plated sleeve |
| 4653-C |
for blind bores, non chrome plated sleeve |
| 4653-D |
standard, chrome plated sleeve |
| 4653-E |
for through bores, chrome plated sleeve |
| 4653-F |
for blind bores, chrome plated sleeve |
| Code |
Type |
Range (mm) |
| 4653-A30D6H7 |
standard, non chrome plated sleeve |
30.6H7 |
| 4653-E18D2H8 |
for through bores, chrome plated sleeve |
18.2H8 |
| Code |
Length ( L) |
| 4653-150 |
45 |
| 4653-1105 |
105 |
| 4653-1235 |
235 |
Thước Đo Panme Đo Lỗ Khoan Cắm
