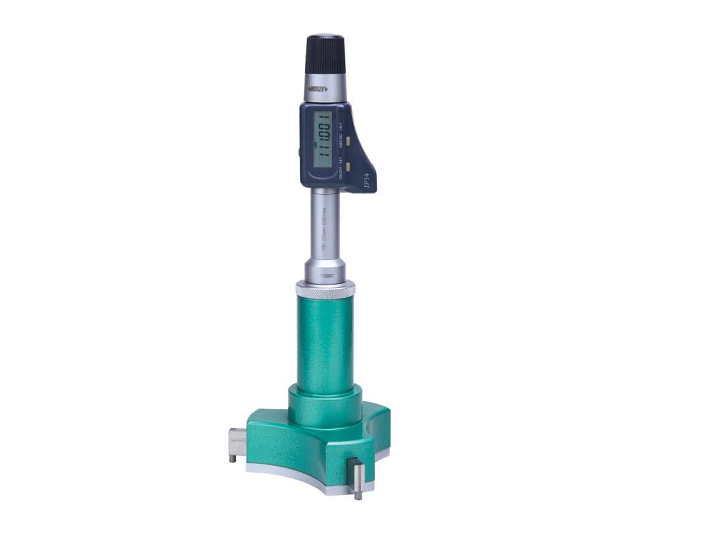

Sản phẩm > Thước Panme Điện Tử Đo Lổ Ba Điểm Bên Trong 3127
| Resolution 0.001mm/0.00005 |
| IP54 dust/waterproof |
| Buttons: on/off, set, mm/inch, ABS/INC |
| Data output |
| SR44 or LR44 battery, automatic power off |
| Ratchet stop |
| Optional accessary: data output system, setting ring (code 6312) |
| Individual |

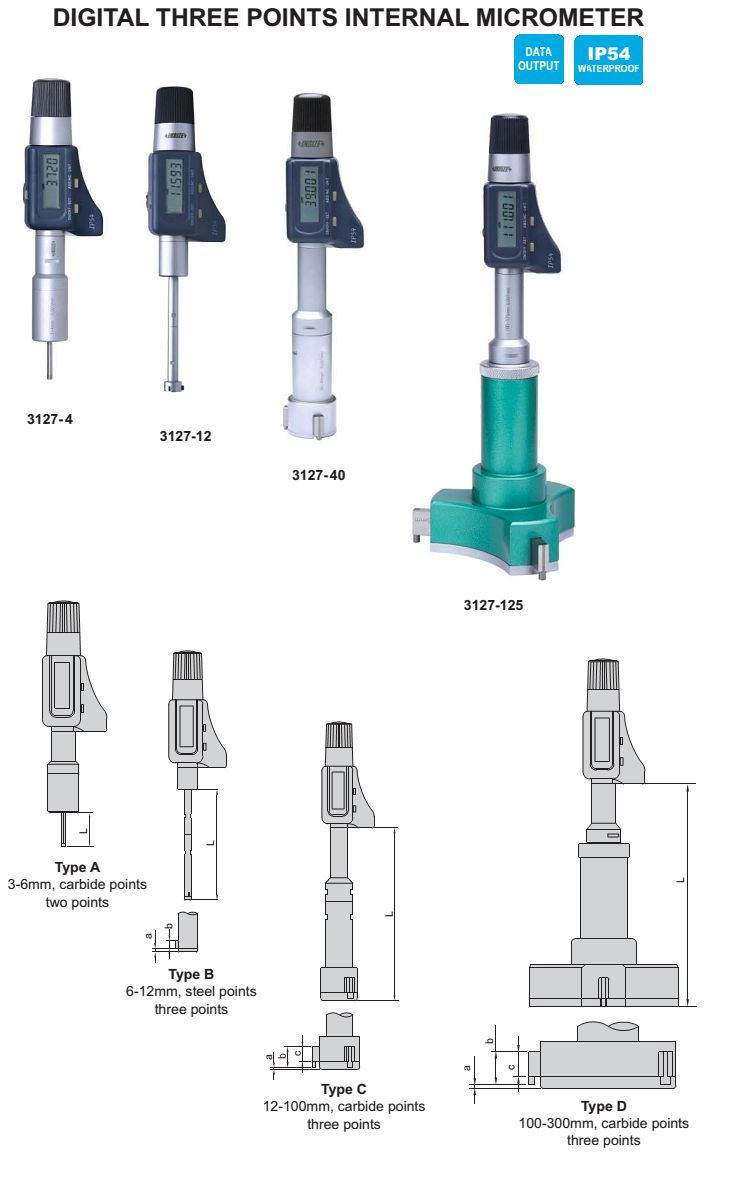

| Code | Range | Type | Accuracy | Setting ring (included) |
Extension rod (included) |
L | a | b | c |
| 3127-4 | 3-4mm/0.12-0.16" | A | 4μm | Ø4mm | ― | 22.5 | ― | ― | ― |
| 3127-5 | 4-5mm/0.16-0.20" | A | 4μm | Ø5mm | ― | 22.5 | ― | ― | ― |
| 3127-6 | 5-6mm/0.20-0.24" | A | 4μm | Ø6mm | ― | 22.5 | ― | ― | ― |
| 3127-8 | 6-8mm/0.24-0.31" | B | 4μm | Ø6mm | 100mm | 54.5 | 1.5 | 2.5 | ― |
| 3127-10 | 8-10mm/0.31-0.39" | B | 4μm | Ø8mm | 100mm | 54.5 | 1.5 | 2.5 | ― |
| 3127-12 | 10-12mm/0.39-0.47" | B | 4μm | Ø10mm | 100mm | 54.5 | 1.5 | 2.5 | ― |
| 3127-16 | 12-16mm/0.47-0.63" | C | 4μm | Ø16mm | 150mm | 80 | 0.5 | 6 | 4.5 |
| 3127-20 | 16-20mm/0.63-0.79" | C | 4μm | Ø16mm | 150mm | 80 | 0.5 | 6 | 4.5 |
| 3127-25 | 20-25mm/0.79-0.98" | C | 4μm | Ø25mm | 150mm | 90 | 0.5 | 8 | 6 |
| 3127-30 | 25-30mm/0.98-1.18" | C | 4μm | Ø25mm | 150mm | 90 | 0.5 | 8 | 6 |
| 3127-40 | 30-40mm/1.18-1.57" | C | 4μm | Ø40mm | 150mm | 97 | 0.5 | 14 | 12 |
| 3127-50 | 40-50mm/1.57-1.97" | C | 5μm | Ø40mm | 150mm | 97 | 0.5 | 14 | 12 |
| 3127-63 | 50-63mm/1.97-2.48" | D | 5μm | Ø62mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3127-75 | 62-75mm/2.44-2.95" | D | 5μm | Ø62mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3127-88 | 75-88mm/2.95-3.46" | D | 5μm | Ø87mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3127-100 | 87-100mm/3.43-3.94" | D | 5μm | Ø87mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3127-125 | 100-125mm/3.94-4.92" | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-150 | 125-150mm/4.92-5.91" | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-175 | 150-175mm/5.91-6.89" | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-200 | 175-200mm/6.89-7.87" | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-225 | 200-225mm/7.87-8.86" | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-250 | 225-250mm/8.86-9.84" | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-275 | 250-275mm/9.84-10.83" | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3127-300 | 275-300mm/10.83-11.81" | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| Set |
| Code | Range | Micrometers (included) | Setting ring (included) | Extension rod (inclued) |
| 3127-363 | 3-6mm/0.12-0.24" | 3-4mm, 4-5mm, 5-6mm | Ø4mm,Ø5mm,Ø6mm | ― |
| 3127-123 | 6-12mm/0.24-0.47" | 6-8mm, 8-10mm, 10-12mm | Ø6mm,Ø8mm,Ø10mm | 100mm |
| 3127-202 | 12-20mm/0.47-0.79" | 12-16mm, 16-20mm | Ø16mm | 150mm |
| 3127-504 | 20-50mm/0.79-1.97" | 20-25mm, 25-30mm, 30-40mm, 40-50mm |
Ø25mm, Ø40mm | 150mm |
| 3127-1004 | 50-100mm/1.97-3.94" | 50-63mm, 62-75mm, 75-88mm, 87-100mm |
Ø62mm, Ø87mm | 150mm |
Thước Panme Điện Tử Đo Lổ Ba Điểm Bên Trong 3127
