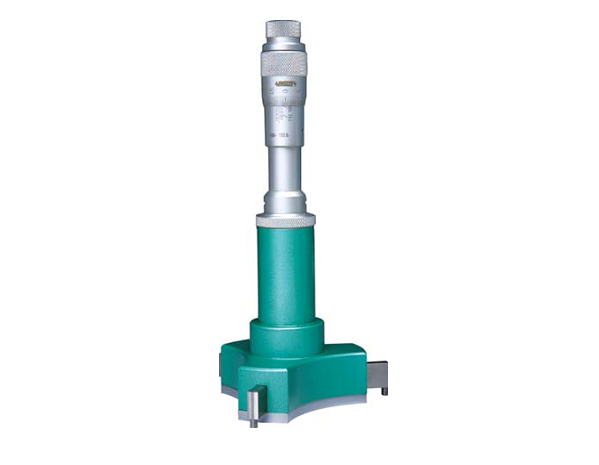

Sản phẩm > Thước Panme Đo Lỗ Ba Điểm Bên Trong 3227
| 3-12mm: graduation 0.001mm |
| 12-300mm: graduation 0.005mm |
| Ratchet stop |
| Optional accessory: setting rings (code 6312) |
| Individual |

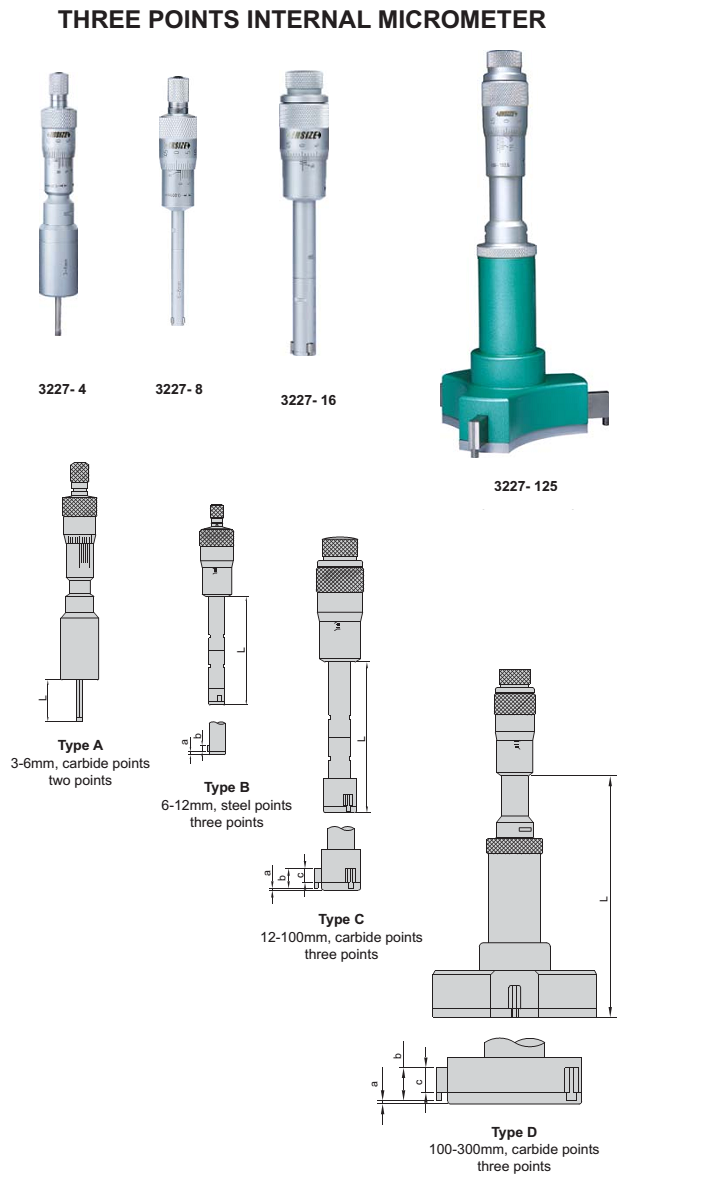

| Code | Range | Type | Accuracy | Setting ring (included) |
Extension rod (included) |
L | a | b | c |
| 3227-4 | 3-4mm | A | 4μm | Ø4mm | ― | 22.5 | ― | ― | ― |
| 3227-5 | 4-5mm | A | 4μm | Ø5mm | ― | 22.5 | ― | ― | ― |
| 3227-6 | 5-6mm | A | 4μm | Ø6mm | ― | 22.5 | ― | ― | ― |
| 3227-8 | 6-8mm | B | 4μm | Ø6mm | 100mm | 54.5 | 1.5 | 2.5 | ― |
| 3227-10 | 8-10mm | B | 4μm | Ø8mm | 100mm | 54.5 | 1.5 | 2.5 | ― |
| 3227-12 | 10-12mm | B | 4μm | Ø10mm | 100mm | 54.5 | 1.5 | 2.5 | ― |
| 3227-16 | 12-16mm | C | 4μm | Ø16mm | 150mm | 80 | 0.5 | 6 | 4.5 |
| 3227-20 | 16-20mm | C | 4μm | Ø16mm | 150mm | 80 | 0.5 | 6 | 4.5 |
| 3227-25 | 20-25mm | C | 4μm | Ø25mm | 150mm | 90 | 0.5 | 8 | 6 |
| 3227-30 | 25-30mm | C | 4μm | Ø25mm | 150mm | 90 | 0.5 | 8 | 6 |
| 3227-40 | 30-40mm | C | 4μm | Ø40mm | 150mm | 97 | 0.5 | 14 | 12 |
| 3227-50 | 40-50mm | C | 5μm | Ø40mm | 150mm | 97 | 0.5 | 14 | 12 |
| 3227-63 | 50-63mm | D | 5μm | Ø62mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3227-75 | 62-75mm | D | 5μm | Ø62mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3227-88 | 75-88mm | D | 5μm | Ø87mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3227-100 | 87-100mm | D | 5μm | Ø87mm | 150mm | 114 | 0.5 | 17.5 | 14.5 |
| 3227-125 | 100-125mm | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-150 | 125-150mm | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-175 | 150-175mm | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-200 | 175-200mm | D | 5μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-225 | 200-225mm | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-250 | 225-250mm | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-275 | 250-275mm | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| 3227-300 | 275-300mm | D | 7μm | ― | 150mm | 145 | 0.5 | 19.5 | 14.5 |
| Set |
| Code | Range | Micrometers (included) | Setting ring (included) | Extension rod (inclued) |
| 3227-363 | 3-6mm | 3-4mm, 4-5mm, 5-6mm | Ø4mm,Ø5mm,Ø6mm | ― |
| 3227-123 | 12-20mm | 6-8mm, 8-10mm, 10-12mm | Ø6mm,Ø8mm,Ø10mm | 100mm |
| 3227-202 | 6-12mm | 12-16mm, 16-20mm | Ø16mm | 150mm |
| 3227-504 | 20-50mm | 20-25mm, 25-30mm, 30-40mm, 40-50mm |
Ø25mm, Ø40mm | 150mm |
| 3227-1004 | 50-100mm | 50-63mm, 62-75mm, 75-88mm, 87-100mm |
Ø62mm, Ø87mm | 150mm |
Thước Panme Đo Lỗ Ba Điểm Bên Trong 3227
