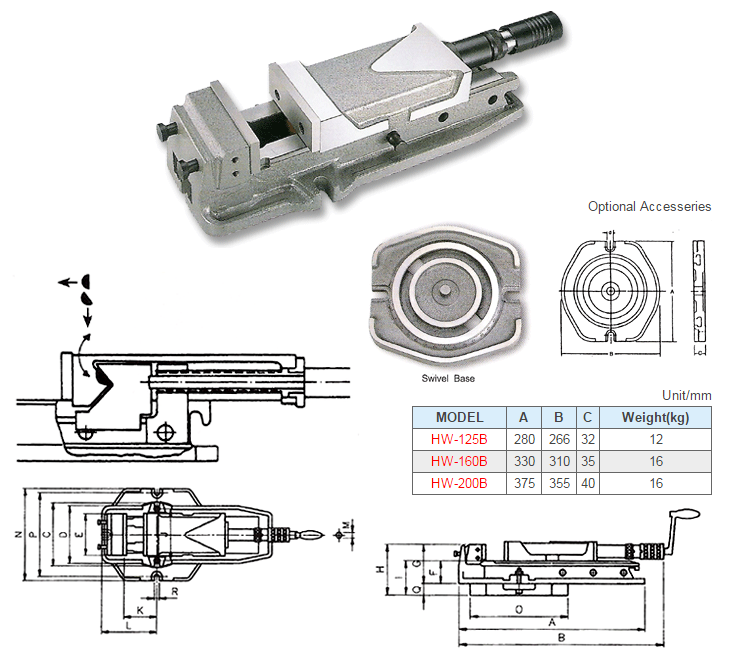

NAME: Hydraulic & Angle Lock Vise |
MODEL:HW |
Product Description: |
Down thrust "semi-sphere segment" mechanism-eliminates jaw lift and work-piece tilt. |
Rigid material vise body of ductile iron FCD60. |
Down thrust "semi-sphere segment" mechanism-eliminates lift and work tilt. |
Vise bed flame hardened to HRC 45 and up takes up wear and maintain accuracy for long life. |
Max. hydraulic clamping force..., 4,000kgs. |
Max. hydraulic & mechanical clamping force..., 6,000kg. |
MODEL | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q | R | Jaw | Jaw | Jaw | ||
Min | Max | Width | Opening | Depth | |||||||||||||||||||
HW-125 | 505 | 570 | 795 |
|
170 | 130 | 72 | 127 | 106 | 160 | 75 | 180 | 180 | 14 | 280 | 266 | 260 | 32 | 16 | 130mm | 220mm | 55mm | |
HW-160 | 605 | 625 | 935 |
|
210 | 160 | 82 | 140 | 117 | 192 | 101 | 195 | 195 | 14 | 334 | 320 | 310 | 35 | 18 | 160mm | 310mm | 58mm | |
HW-200 | 700 | 725 | 1035 | 280 | 240 | 200 | 100 | 163 | 146 | 240 | 115 | 265 | 265 | 14 | 420 | 420 | 390 | 50 | 18 | 200mm | 310mm | 63mm |
