| Resolution 0.001mm/0.00005" |
| IP54 dust/waterproof |
| Button function: on/off, set, mm/inch, ABS/INC, data output |
| Data output |
| SR44 or LR44 battery, automatic power off |
| Ratchet stop |
| Supplied with 7 pairs of anvil/spindle tip |
| (same as series 3280, previous page) |
| Setting standards are included (except 0-25mm/0-1") |
| Optional accessary: anvil/spindle tip code 3280-SP1 and 3280-SP2 |
| (same as series 3280, previous page), data output system |

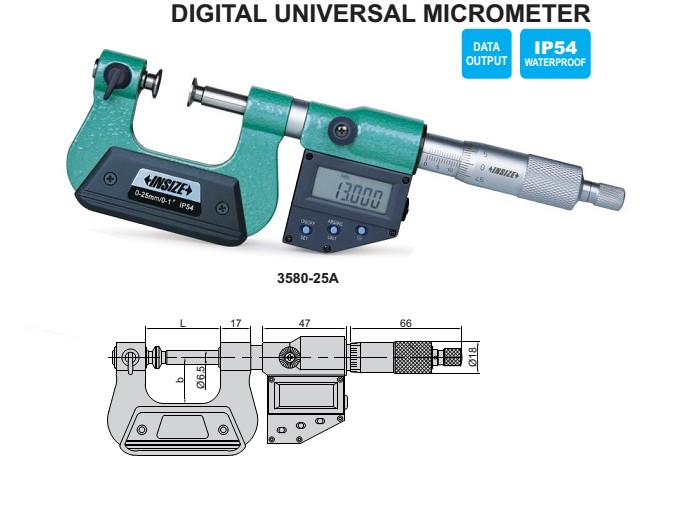

| Code | Range | Accuracy | L | b |
| 3580-25A | 0-25mm/0-1" | ±4μm | 42 | 26 |
| 3580-50A | 25-50mm/1-2" | ±4μm | 67 | 38 |
