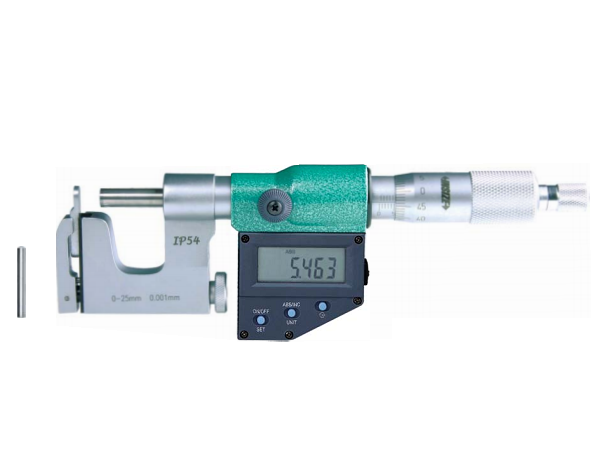

Measure tube thickness, shoulder edge distance, |
rivet head height, etc. |
Supplied with flat anvil and rod anvil |
Resolution 0.001mm/0.00005" |
IP54 dust/waterproof |
Button function: on/off, set, mm/inch, ABS/INC, data output |
Data output |
SR44 or LR44 battery, automatic power off |
Ratchet stop |
Carbide spindle tip |
Setting standards are included (except 0-25mm/0-1") |
Optional accessory: data output system |

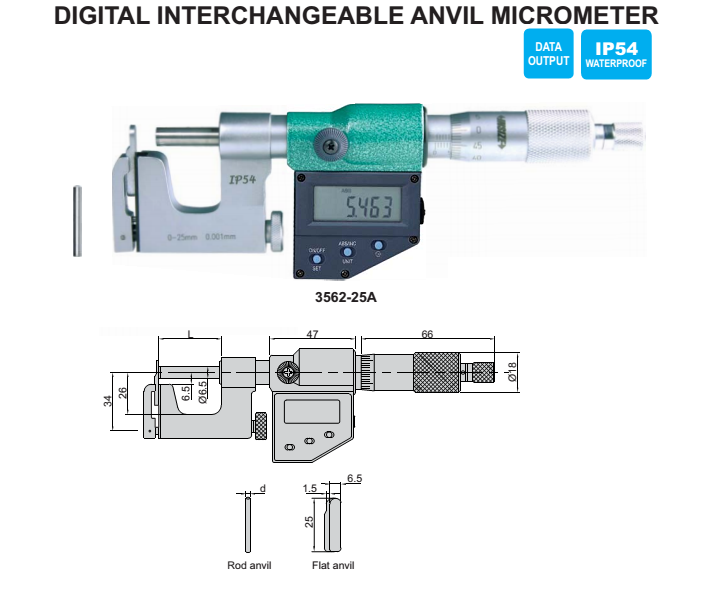

Code | Range | Accuracy | L | d |
3562-25A | 0-25mm/0-1" | ±4μm | 28.5 | Ø3 |
3562-50A | 25-50mm/1-2" | ±4μm | 53.5 | Ø5 |
