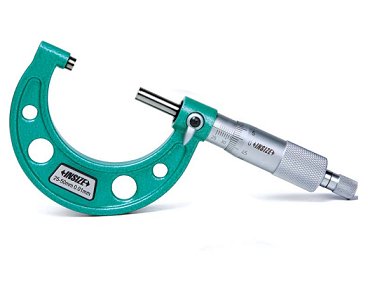

Sản phẩm > Thước Đo Panme Cơ 3203 - 50A & 3203 - 25A
| Graduation: metric 0.01mm |
| imperial 0.0001" |
| Carbide measuring faces |
| Meet DIN863 |
| Supplied with setting standards (except 0-25mm and 0-1") |
| Metric (ratchet stop type) |

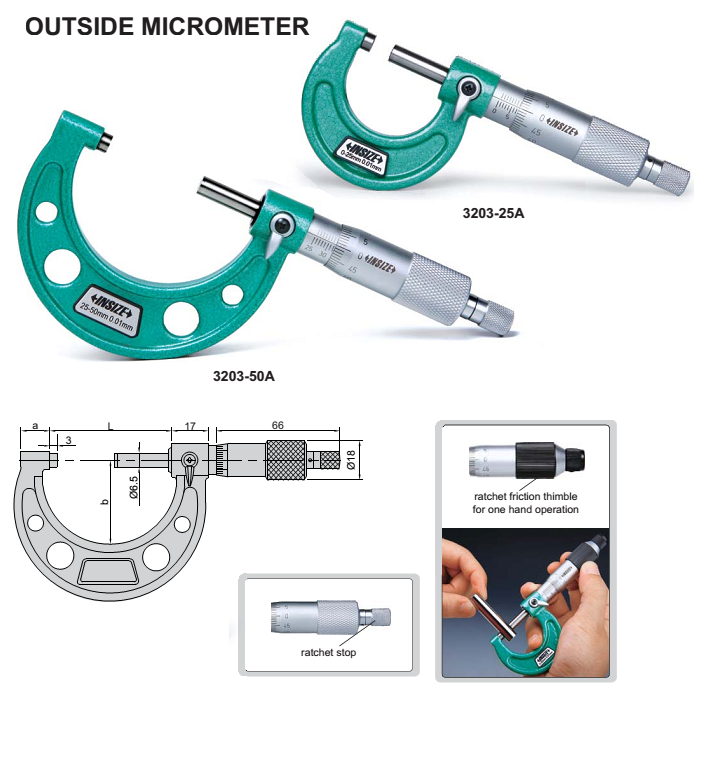

| Code | Range | Accuracy | L | a | b |
| 3203-25A | 0-25mm | 4μm | 32 | 9 | 28 |
| 3203-50A | 25-50mm | 4μm | 57 | 14 | 38 |
| 3203-75A | 50-75mm | 5μm | 82 | 15 | 49 |
| 3203-100A | 75-100mm | 5μm | 107 | 15 | 60 |
| 3203-125A | 100-125mm | 6μm | 133 | 16.5 | 73 |
| 3203-150A | 125-150mm | 6μm | 158 | 16.5 | 85 |
| 3203-175A | 150-175mm | 7μm | 183 | 19.4 | 104 |
| 3203-200A | 175-200mm | 7μm | 209 | 19.4 | 117 |
| 3203-225A | 200-225mm | 8μm | 234 | 19.4 | 130 |
| 3203-250A | 225-250mm | 8μm | 260 | 19.4 | 142 |
| 3203-275A | 250-275mm | 9μm | 285 | 19.4 | 155 |
| 3203-300A | 275-300mm | 9μm | 310 | 19.4 | 168 |
| Metric (ratchet friction thimble type) |
| Code | Range | Accuracy | L | a | b |
| 3203-25FA | 0-25mm | 4µm | 32 | 9 | 28 |
| 3203-50FA | 25-50mm | 4µm | 57 | 14 | 38 |
| Imperial (ratchet stop type) |
| Code | Range | Accuracy | L | a | b |
| 3203-1A | 0-1" | 0.00015" | 32 | 9 | 28 |
| 3203-2A | 1-2" | 0.00015" | 57 | 14 | 38 |
| 3203-3A | 2-3" | 0.0002" | 82 | 15 | 49 |
| 3203-4A | 3-4" | 0.0002" | 107 | 15 | 60 |
| 3203-5A | 4-5" | 0.00025" | 133 | 16.5 | 73 |
| 3203-6A | 5-6" | 0.00025" | 158 | 16.5 | 85 |
| Metric type) micrometer set (ratchet stop |
| Code | Range | Micrometers included |
| 3203-753A | 0-75mm | 3203-25A, 3203-50A, 3203-75A |
| 3203-1004A | 0-100mm | 3203-25A, 3203-50A, 3203-75A, 3203-100A |
| 3203-1506A | 0-150mm | 3203-25A, 3203-50A, 3203-75A, 3203-100A, 3203-125A, 3203-150A |
| 3203-3006A | 150-300mm | 3203-175A,3203-200A, 3203-225A, 3203-250A, 3203-275A, 3203-300A |
| 3203-3012A | 0-300mm | 3203-25A, 3203-50A, 3203-75A, 3203-100A, 3203-125A, 3203-150A, 3203-175A,3203-200A, 3203-225A, 3203-250A, 3203-275A, 3203-300A |
Thước Đo Panme Cơ 3203 - 50A & 3203 - 25A
