Sản phẩm > Êtô Khóa Thủy Lực MC Loại BMV
| FEATURES : |
| One piece casting of vise bed and flexed jaw. |
| Down thrust "Semis-sphere Segment" mechanism-eliminates jaw lift and work tilt. |
| Rigid material-vise body of ductile iron FCD60JIS (equal to GGG60) with 60 kgs/mm2 or 80,000 psi tensile strength. |
| Vise bed flame with harden treatment up to HRC 45o and up takes up wear and maintain accuracy for long. |
| NO | Item | JIS grade 1 | Guaranteed |
| 1 | Vise side-lock on bottom to slide way square | 0.02 100mm | 0.010 100mm |
| 2 | Keyways on bottom of vise bed square to clamping surface of jaw plate | 0.02 100mm | 0.015 100mm |
| 3 | Both jaw plate parallel | 0.02 100mm | 0.020 100mm |
| 4 | Max opening test block parallel to bottom of vise body | 0.02 100mm | 0.030 100mm |
| 5 | Top of rectangular test block clamed tightly by jaw paralled to bottom of vise body | 0.02 100mm | 0.020 100mm |
| 6 | Surface of vise bed parallel to bottom of vise body | 0.02 100mm | 0.015 100mm |

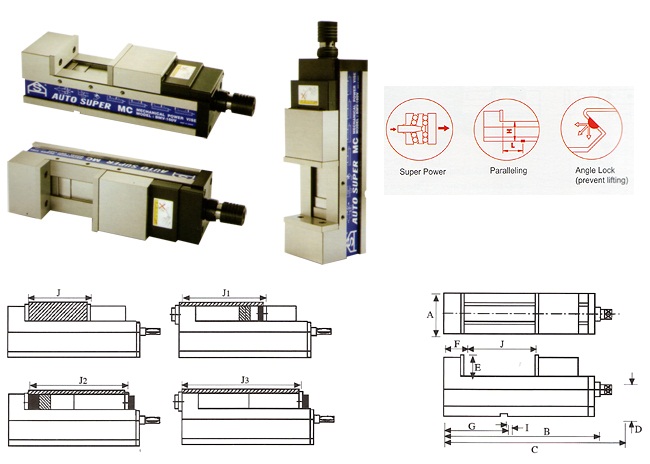

| Model | A | B | C | D | E | F | G | I | Jaw Opening (Max.) | Clamping Force | Weight Body | |||
| J | J1 | J2 | J3 | |||||||||||
| BMV-100V | 101 | 340 | 470 | 85 | 48 | 80 | 125 | 16 | 145 | 190 | 230 | 320 | 4000kgf | 27 kgs |
| BMV-130V | 131 | 405 | 535 | 95 | 55 | 85 | 150 | 18 | 220 | 240 | 290 | 380 | 4500kgf | 40 kgs |
| BMV-160V | 161 | 495 | 625 | 105 | 58 | 100 | 165 | 18 | 290 | 320 | 360 | 470 | 5200kgf | 58 kgs |
| BMV-200V | 201 | 570 | 700 | 110 | 63 | 108 | 190 | 18 | 330 | 360 | 420 | 540 | 6500kgf | 87 kgs |
Êtô Khóa Thủy Lực MC Loại BMV
