| Features: |
| 1. One piece casting of vise bed and flexed jaw. |
| 2. Down thrust Semis-sphere Segment mechanism-eliminates jaw lift and work tilt. |
| 3. Rigid material-vise body of ductile iron FCD60JIS (equal to GGG60) with 60 kgs/mm |
| 4. Vise bed flame with harden treatment up to HRC 45o and up takes up wear and maintain accuracy for long. |
| 5. Chip cover is aplied on this vise to prevent from chis falling to Leas screw and inside of vise. |
| NO | Item |
JIS grade 1
|
Guaranteed |
| 1 | Vise side-lock on bottom to slide way square | 0.02 100mm |
0.010 100mm |
| 2 | Keyways on bottom of vise bed square to clamping surface of jaw plate | 0.02 100mm | 0.015 100mm |
| 3 | Both jaw plate parallel | 0.02 100mm | 0.020 100mm |
| 4 | Max opening test block parallel to bottom of vise body | 0.02 100mm | 0.030 100mm |
| 5 | Top of rectangular test block clamed tightly by jaw paralled to bottom of vise body | 0.02 100mm | 0.020 100mm |
| 6 | Surface of vise bed parallel to bottom of vise body | 0.02 100mm | 0.015 100mm |

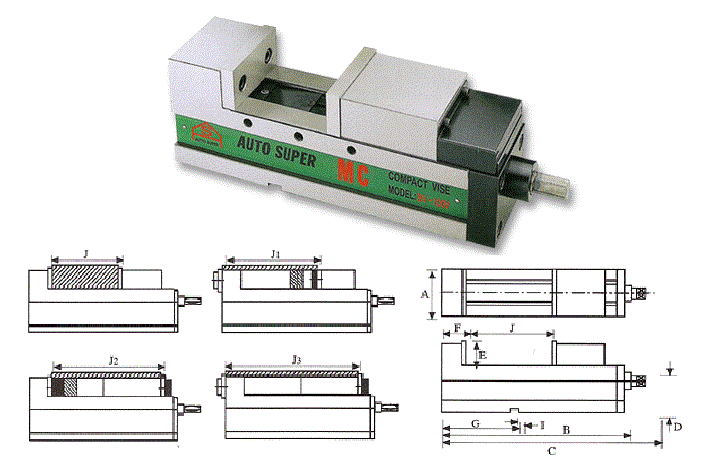

| Model | A | B | C | D | E | F | G | I | Jaw Opening (Max.) | Weight Body | |||
| J | J1 | J2 | J3 | ||||||||||
| BV-100 | 101 | 340 | 430 | 85 | 48 | 80 | 125 | 16 | 125 | 190 | 230 | 320 | 26 kgs |
| BV-130 | 131 | 405 | 495 | 95 | 55 | 85 | 150 | 18 | 180 | 240 | 290 | 380 | 39 kgs |
| BV-160 | 161 | 495 | 585 | 105 | 58 | 100 | 165 | 18 | 240 | 320 | 360 | 470 | 57 kgs |
| BV-200 | 201 | 570 | 666 | 110 | 63 | 108 | 190 | 18 | 280 | 360 | 420 | 540 | 86 kgs |
