| Features: |
| 1. One piece casting of vise bed and flexed jaw. |
| 2. Down thrust Semis-sphere Segment mechanism-eliminates jaw lift and work tilt. |
| 3. Rigid material-vise body of ductile iron FCD60JIS (equal to GGG60) with 60 kgs/mm2 |
| 4. Vise bed flame with harden treatment up to HRC 45o and up takes up wear and maintain accuracy for long. |
| 5. Chip cover is aplied on this vise to prevent from chis falling to Leas screw and inside of vise. |
| NO | Item | JIS grade 1 | Guaranteed |
| 1 | Vise side-lock on bottom to slide way square | 0.02 100mm | 0.01 100mm |
| 2 | Keyways on bottom of vise bed square to clamping surface of jaw plate | 0.02 100mm | 0.015 100mm |
| 3 | Both jaw plate parallel | 0.02 100mm | 0.02 100mm |
| 4 | Max opening test block parallel to bottom of vise body | 0.02 100mm | 0.03 100mm |
| 5 | Top of rectangular test block clamed tightly by jaw paralled to bottom of vise body | 0.02 100mm | 0.02 100mm |
| 6 | Surface of vise bed parallel to bottom of vise body | 0.02 100mm | 0.015 100mm |

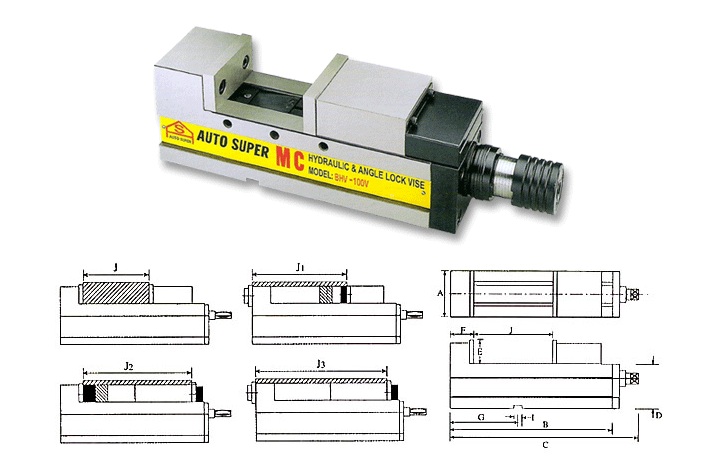

| Model | A | B | C | D | E | F | G | I | Jaw Opening (Max.) | Claming Force | Weight Body | |||
| J | J1 | J2 | J3 | |||||||||||
| BHV-100V | 101 | 340 | 470 | 85 | 48 | 80 | 125 | 16 | 125 | 190 | 230 | 320 | 4000kgf | 27kgs |
| BHV-130V | 131 | 405 | 535 | 95 | 55 | 85 | 150 | 18 | 180 | 240 | 290 | 380 | 5000kgf | 40kgs |
| BHV-160V | 161 | 495 | 625 | 105 | 58 | 100 | 165 | 18 | 240 | 320 | 360 | 470 | 6500kgf | 58kgs |
| BHV-200V | 201 | 570 | 700 | 110 | 63 | 108 | 190 | 18 | 280 | 360 | 420 | 540 | 8000kgf | 87kgs |
