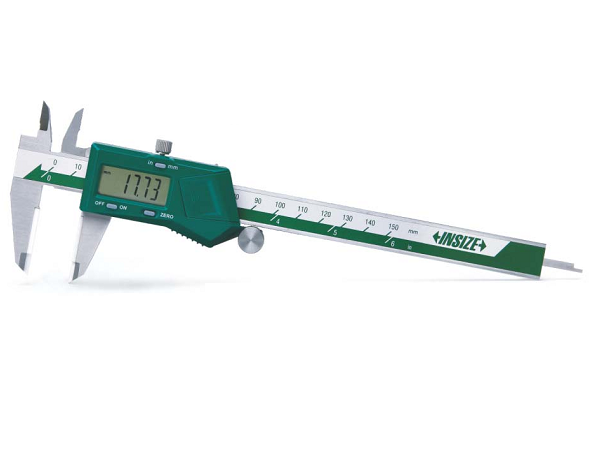

| Ceramic tipped jaws for outside measurement, extremely wear-resistant, |
| non-magnetic, non-conductive |
| Resolution: 0.01mm/0.0005" |
| Buttons: on/off, zero, mm/inch |
| Automatic power off, move the digital unit to turn on power |
| Battery CR2032, data output, made of stainless steel |
| Optional accessory: data output system |

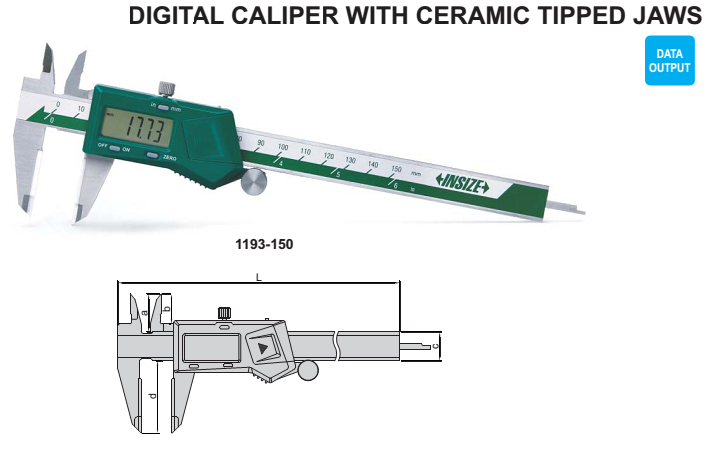

| Code | Range | Accuracy | Thumb roller | L | a | b | c | d |
| 1193-150 | 0-150mm/0-6" | ±0.03mm | with | 235 | 21 | 16.5 | 16 | 40 |
| 1193-200 | 0-200mm/0-8" | ±0.03mm | with | 297 | 24 | 20 | 16 | 50 |
| 1193-300 | 0-300mm/0-12" | ±0.03mm | with | 390 | 26 | 21.5 | 16 | 60 |
| 1193-150W | 0-150mm/0-6" | ±0.03mm | without | 235 | 21 | 16.5 | 16 | 40 |
| 1193-200W | 0-200mm/0-8" | ±0.03mm | without | 297 | 24 | 20 | 16 | 50 |
| 1193-300W | 0-300mm/0-12" | ±0.03mm | without | 390 | 26 | 21.5 | 16 | 60 |
