Sản phẩm > Mâm Cặp Thuỷ Lực 3 Chấu OPB

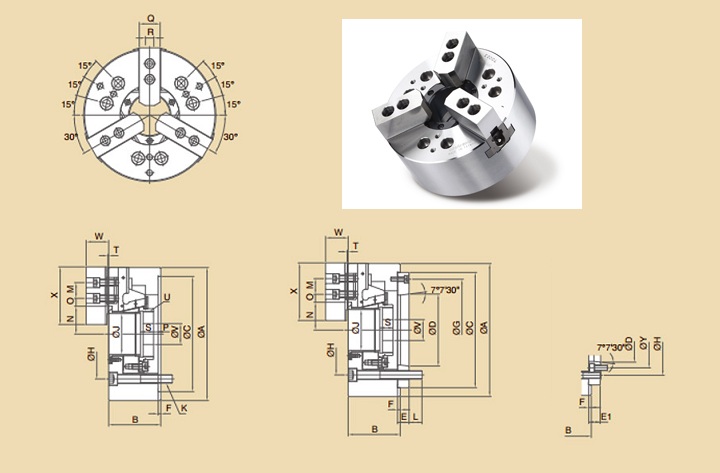

| MODEL / SPEC. | Nose of Spindle | A | B | C(h6) | D | E | E1 | F | G | H | J | K |
| OPB-206 | A2-5 | 170 | 81 | 140 | Ø82.563 | - | 20 | 5 | - | PCDØ122 | 52 | 6-M10×1.5P |
| OPB-208 | A2-6 | 215 | 91 | 170 | Ø106.375 | - | 22 | 5 | - | PCDØ150 | 66 | 6-M12×1.75P |
| OPB-210 | A2-8 | 256 | 100 | 220 | Ø139.719 | - | 28 | 5 | - | PCDØ180 | 81 | 6-M16×2P |
| OPB-212 | A2-11(A2-8) | 315 | 108 | 300 | Ø139.719 | 22 | 33 | 5 | 260 | PCDØ235 | 106 | 6-M20×2.5P |
| OPB-215 | A2-15(A2-11) | 405 | 133 | 380 | Ø285.775 | 27 | 41 | 6 | 330.2 | PCDØ330.2 | 142 | 6-M24×3P |
| OPB-218 | A2-15(A2-11) | 455 | 134 | 380 | Ø196.869 | 27 | 41 | 6 | 330.2 | PCDØ330.2 | 166.5 | 6-M24×3P |
| MODEL / SPEC. | L | M | N max. | N min. | O max | O min. | P max. | P min. | Q | R | S | T | U |
| OPB-206 | - | 20 | 36.35 | 33.6 | 21.1 | 9.1 | 7 | -5 | 31 | 12 | 23 | 2 | M60 x 2P |
| OPB-208 | - | 25 | 46.6 | 42.9 | 26.6 | 11.6 | 10 | -6 | 35 | 14 | 25 | 2 | M75 x 2P |
| OPB-210 | - | 30 | 54.6 | 50.1 | 33.1 | 13.6 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M90 x 2P |
| OPB-212 | 27 | 30 | 69.7 | 64.3 | 45.6 | 12.6 | 8 | -15 | 50 | 21 | 28 | 2 | M115 x 2P |
| OPB-215 | 32 | 43 | 95.1 | 89.5 | 43.55 | 16.55 | 8 | -15 | 62 | 22 | 42.5 | 5 | M155 x 2P |
| OPB-218 | 32 | 43 | 108.29 | 102.45 | 35.55 | 16.55 | 11.5 | -13 | 62 | 22 | 38 | 5 | M180 x 3P |
| MODEL / SPEC. | L | M | N max. | N min. | O max | O min. | P max. | P min. | Q | R | S | T | U |
| OPB-206 | - | 20 | 36.35 | 33.6 | 21.1 | 9.1 | 7 | -5 | 31 | 12 | 23 | 2 | M60 x 2P |
| OPB-208 | - | 25 | 46.6 | 42.9 | 26.6 | 11.6 | 10 | -6 | 35 | 14 | 25 | 2 | M75 x 2P |
| OPB-210 | - | 30 | 54.6 | 50.1 | 33.1 | 13.6 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M90 x 2P |
| OPB-212 | 27 | 30 | 69.7 | 64.3 | 45.6 | 12.6 | 8 | -15 | 50 | 21 | 28 | 2 | M115 x 2P |
| OPB-215 | 32 | 43 | 95.1 | 89.5 | 43.55 | 16.55 | 8 | -15 | 62 | 22 | 42.5 | 5 | M155 x 2P |
| OPB-218 | 32 | 43 | 108.29 | 102.45 | 35.55 | 16.55 | 11.5 | -13 | 62 | 22 | 38 | 5 | M180 x 3P |
| MODEL / SPEC. | L | M | N max. | N min. | O max | O min. | P max. | P min. | Q | R | S | T | U |
| OPB-206 | - | 20 | 36.35 | 33.6 | 21.1 | 9.1 | 7 | -5 | 31 | 12 | 23 | 2 | M60 x 2P |
| OPB-208 | - | 25 | 46.6 | 42.9 | 26.6 | 11.6 | 10 | -6 | 35 | 14 | 25 | 2 | M75 x 2P |
| OPB-210 | - | 30 | 54.6 | 50.1 | 33.1 | 13.6 | 8.5 | -10.5 | 40 | 16 | 25 | 2 | M90 x 2P |
| OPB-212 | 27 | 30 | 69.7 | 64.3 | 45.6 | 12.6 | 8 | -15 | 50 | 21 | 28 | 2 | M115 x 2P |
| OPB-215 | 32 | 43 | 95.1 | 89.5 | 43.55 | 16.55 | 8 | -15 | 62 | 22 | 42.5 | 5 | M155 x 2P |
| OPB-218 | 32 | 43 | 108.29 | 102.45 | 35.55 | 16.55 | 11.5 | -13 | 62 | 22 | 38 | 5 | M180 x 3P |
Mâm Cặp Thuỷ Lực 3 Chấu OPB
