Sản phẩm > CEC

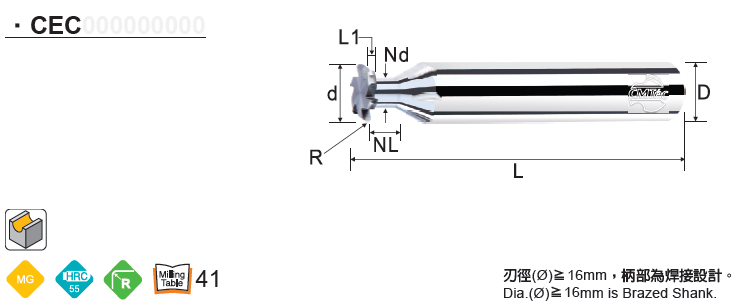

| Diameter(d) | Radius(R) | Cutting Length(L1) | Nd | NL | Overall Length(L) | Shank(D) | Uncoated Order No |
| 4.0 | 0.3R | 0.6 | 2.0 | 3.5 | 50 | 6 | CEC040006004 |
| 4.0 | 0.5R | 1.0 | 2.0 | 3.5 | 50 | 6 | CEC040010004 |
| 4.0 | 1.0R | 2.0 | 2.0 | 3.5 | 50 | 6 | CEC040020004 |
| 5.0 | 0.3R | 0.6 | 2.2 | 3.5 | 50 | 6 | CEC050006004 |
| 5.0 | 0.5R | 1.0 | 2.2 | 3.5 | 50 | 6 | CEC050010004 |
| 5.0 | 1.0R | 2.0 | 2.2 | 3.5 | 50 | 6 | CEC050020004 |
| 6.0 | 0.3R | 0.6 | 2.7 | 4 | 50 | 6 | CEC060006004 |
| 6.0 | 0.5R | 1.0 | 2.7 | 4 | 50 | 6 | CEC060010004 |
| 6.0 | 1.0R | 2.0 | 2.7 | 4 | 50 | 6 | CEC060020004 |
| 8.0 | 0.3R | 0.6 | 3.6 | 5 | 60 | 8 | CEC080006006 |
| 8.0 | 0.5R | 1.0 | 3.6 | 5 | 60 | 8 | CEC080010006 |
| 8.0 | 1.0R | 2.0 | 3.6 | 5 | 60 | 8 | CEC080020006 |
| 10.0 | 0.3R | 0.6 | 4.5 | 6 | 75 | 10 | CEC100006006 |
| 10.0 | 0.5R | 1.0 | 4.5 | 6 | 75 | 10 | CEC100010006 |
| 10.0 | 1.0R | 2.0 | 4.5 | 6 | 75 | 10 | CEC100020006 |
| 10.0 | 1.5R | 3.0 | 4.5 | 6 | 75 | 10 | CEC100030006 |
| 10.0 | 2.0R | 4.0 | 4.5 | 6 | 75 | 10 | CEC100040006 |
| 12.0 | 0.3R | 0.6 | 5.5 | 6 | 75 | 12 | CEC120006006 |
| 12.0 | 0.5R | 1.0 | 5.5 | 6 | 75 | 12 | CEC120010006 |
| 12.0 | 1.0R | 2.0 | 5.5 | 6 | 75 | 12 | CEC120020006 |
| 12.0 | 1.5R | 3.0 | 5.5 | 6 | 75 | 12 | CEC120030006 |
| 12.0 | 2.0R | 4.0 | 5.5 | 6 | 75 | 12 | CEC120040006 |
CEC
