Sản phẩm > CETF2

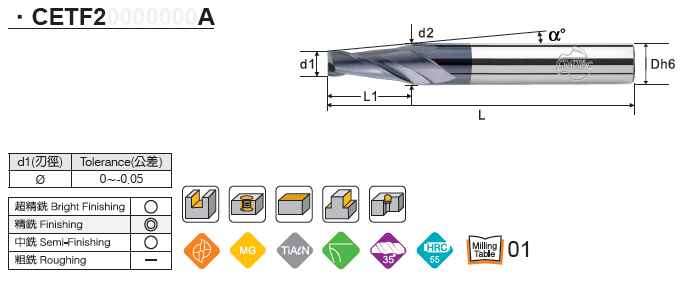

| First Diameter(d1) | One-Side Angel(α°) | Cutting Length(L1) | Second Diameter(d2) | Overall Length(L) | Shank(D) | TiAlN Order No. |
| 1.0 | 0.5° | 4 | 1.07 | 50 | 4 | CETF2010005A |
| 1.0 | 1° | 4 | 1.14 | 50 | 4 | CETF2010010A |
| 1.0 | 1.5° | 4 | 1.21 | 50 | 4 | CETF2010015A |
| 1.0 | 2° | 4 | 1.28 | 50 | 4 | CETF2010020A |
| 1.0 | 2.5° | 4 | 1.35 | 50 | 4 | CETF2010025A |
| 1.0 | 3° | 4 | 1.42 | 50 | 4 | CETF2010030A |
| 1.0 | 5° | 4 | 1.70 | 50 | 4 | CETF2010050A |
| 1.0 | 7° | 4 | 1.98 | 50 | 4 | CETF2010070A |
| 1.0 | 10° | 4 | 2.41 | 50 | 4 | CETF20100100A |
| 1.0 | 15° | 4 | 3.14 | 50 | 4 | CETF20100150A |
| 1.5 | 0.5° | 5 | 1.59 | 50 | 4 | CETF2015005A |
| 1.5 | 1° | 5 | 1.68 | 50 | 4 | CETF2015010A |
| 1.5 | 1.5° | 5 | 1.76 | 50 | 4 | CETF2015015A |
| 1.5 | 2° | 5 | 1.85 | 50 | 4 | CETF2015020A |
| 1.5 | 2.5° | 5 | 1.93 | 50 | 4 | CETF2015025A |
| 1.5 | 3° | 5 | 2.02 | 50 | 4 | CETF2015030A |
| 1.5 | 5° | 5 | 2.37 | 50 | 4 | CETF2015050A |
| 2.0 | 0.5° | 6 | 2.10 | 50 | 4 | CETF2020005A |
| 2.0 | 1° | 6 | 2.21 | 50 | 4 | CETF2020010A |
| 2.0 | 1.5° | 6 | 2.31 | 50 | 4 | CETF2020015A |
| 2.0 | 2° | 6 | 2.41 | 50 | 4 | CETF2020020A |
| 2.0 | 2.5° | 6 | 2.52 | 50 | 4 | CETF2020025A |
| 2.0 | 3° | 6 | 2.62 | 50 | 4 | CETF2020030A |
| 2.0 | 5° | 6 | 3.05 | 50 | 4 | CETF2020050A |
| 2.0 | 7° | 6 | 3.47 | 50 | 4 | CETF2020070A |
| 2.0 | 10° | 6 | 4.11 | 50 | 6 | CETF20200100A |
| 2.0 | 15° | 6 | 5.22 | 50 | 6 | CETF20200150A |
| 2.5 | 0.5° | 8 | 2.64 | 50 | 4 | CETF2025005A |
| 2.5 | 1° | 8 | 2.78 | 50 | 4 | CETF2025010A |
| 2.5 | 1.5° | 8 | 2.91 | 50 | 4 | CETF2025015A |
| 2.5 | 2° | 8 | 3.05 | 50 | 4 | CETF2025020A |
| 2.5 | 2.5° | 8 | 3.20 | 50 | 4 | CETF2025025A |
| 2.5 | 3° | 8 | 3.33 | 50 | 4 | CETF2025030A |
| 2.5 | 5° | 8 | 3.90 | 50 | 4 | CETF2025050A |
| 3.0 | 0.5° | 10 | 3.17 | 50 | 6 | CETF2030005A |
| 3.0 | 1° | 10 | 3.35 | 50 | 6 | CETF2030010A |
| 3.0 | 1.5° | 10 | 3.52 | 50 | 6 | CETF2030015A |
| 3.0 | 2° | 10 | 3.69 | 50 | 6 | CETF2030020A |
| 3.0 | 2.5° | 10 | 3.87 | 50 | 6 | CETF2030025A |
| 3.0 | 3° | 10 | 4.05 | 50 | 6 | CETF2030030A |
| 3.0 | 5° | 10 | 4.75 | 50 | 6 | CETF2030050A |
| 3.0 | 7° | 12 | 6.00 | 50 | 6 | CETF2030070A |
| 3.0 | 10° | 12 | 7.22 | 60 | 8 | CETF20300100A |
| 3.0 | 15° | 12 | 9.40 | 75 | 10 | CETF20300150A |
| 4.0 | 0.5° | 15 | 4.26 | 50 | 6 | CETF2040005A |
| 4.0 | 1° | 15 | 4.52 | 50 | 6 | CETF2040010A |
| 4.0 | 1.5° | 15 | 4.79 | 50 | 6 | CETF2040015A |
| 4.0 | 2° | 15 | 5.04 | 50 | 6 | CETF2040020A |
| 4.0 | 2.5° | 15 | 5.31 | 50 | 6 | CETF2040025A |
| 4.0 | 3° | 15 | 5.57 | 50 | 6 | CETF2040030A |
| 4.0 | 5° | 15 | 6.62 | 60 | 8 | CETF2040050A |
| 4.0 | 7° | 16 | 8.00 | 60 | 8 | CETF2040070A |
| 4.0 | 10° | 17 | 10.00 | 75 | 10 | CETF20400100A |
| 4.0 | 15° | 15 | 12.00 | 75 | 12 | CETF20400150A |
| 5.0 | 0.5° | 20 | 5.34 | 60 | 6 | CETF2050005A |
| 5.0 | 1° | 20 | 5.70 | 60 | 6 | CETF2050010A |
| 5.0 | 1.5° | 20 | 6.00 | 60 | 6 | CETF2050015A |
| 5.0 | 2° | 20 | 6.39 | 60 | 8 | CETF2050020A |
| 5.0 | 2.5° | 20 | 6.74 | 60 | 8 | CETF2050025A |
| 5.0 | 3° | 20 | 7.10 | 60 | 8 | CETF2050030A |
| 5.0 | 5° | 20 | 8.50 | 75 | 10 | CETF2050050A |
| 5.0 | 7° | 20 | 10.00 | 75 | 10 | CETF2050070A |
| 5.0 | 10° | 20 | 12.00 | 75 | 12 | CETF20500100A |
| 6.0 | 0.5° | 20 | 6.35 | 60 | 8 | CETF2060005A |
| 6.0 | 1° | 20 | 6.70 | 60 | 8 | CETF2060010A |
| 6.0 | 1.5° | 20 | 7.05 | 60 | 8 | CETF2060015A |
| 6.0 | 2° | 20 | 7.40 | 60 | 8 | CETF2060020A |
| 6.0 | 2.5° | 20 | 7.75 | 60 | 8 | CETF2060025A |
| 6.0 | 3° | 20 | 8.10 | 75 | 10 | CETF2060030A |
| 6.0 | 5° | 20 | 9.50 | 75 | 10 | CETF2060050A |
| 6.0 | 7° | 24 | 12.00 | 75 | 12 | CETF2060070A |
| 6.0 | 10° | 25 | 14.00 | 75 | 14 | CETF20600100A |
| 8.0 | 0.5° | 25 | 8.44 | 75 | 10 | CETF2080005A |
| 8.0 | 1° | 25 | 8.87 | 75 | 10 | CETF2080010A |
| 8.0 | 1.5° | 25 | 9.31 | 75 | 10 | CETF2080015A |
| 8.0 | 2° | 25 | 9.75 | 75 | 10 | CETF2080020A |
| 8.0 | 3° | 25 | 10.62 | 75 | 12 | CETF2080030A |
| 8.0 | 5° | 25 | 12.37 | 75 | 14 | CETF2080050A |
| 8.0 | 7° | 32 | 16.00 | 100 | 16 | CETF2080070A |
| 8.0 | 10° | 28 | 18.00 | 100 | 18 | CETF20800100A |
| 10.0 | 0.5° | 35 | 10.61 | 75 | 12 | CETF20100005A |
| 10.0 | 1° | 35 | 11.22 | 75 | 12 | CETF20100010A |
| 10.0 | 1.5° | 35 | 11.83 | 75 | 12 | CETF20100015A |
| 10.0 | 2° | 35 | 12.44 | 75 | 14 | CETF20100020A |
| 10.0 | 3° | 35 | 13.67 | 75 | 14 | CETF20100030A |
| 10.0 | 5° | 34.2 | 16.00 | 100 | 16 | CETF20100050A |
CETF2
