Sản phẩm > Xi Lanh Thủy Lực Tốc Độc Cao Lổ Thông P

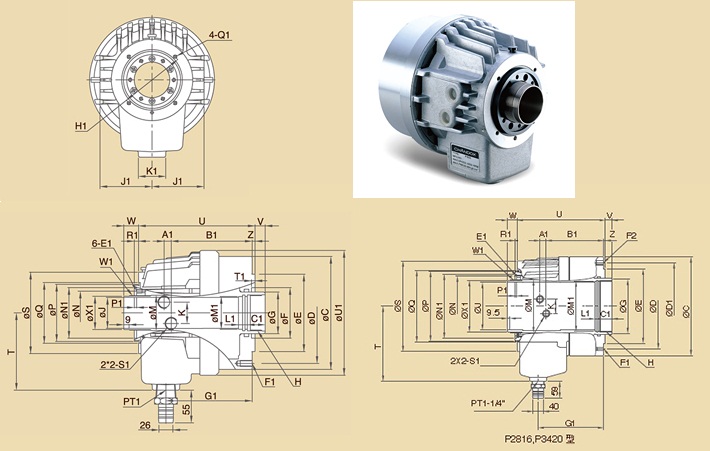

MODEL / SPEC. A1 B1 C C1 D D1 E (h7) E1 F F1 F2 G G1 H J J1 K K1 L1 M M1
P0928 9 109 120 25 100 - 80 8-M5x0.8P 60 6-M8x1.25P - 45 114 M38x1.5P 28 60 25 46 15 34.6 34
P1036 11 120 136 25 115 - 100 6-M5×0.8P 65 6-M10×1.5P - 48 126 M42×1.5P 36 68 32 46 15 44.6 38
P1246 12 127 155 30 130 - 100 6-M6×1P 80 12-M10×1.5P - 65 133 M55×2P 46 76 36 46 15 52.9 50
P1552 12 136 190 30 170 - 130 6-M6×1P 85 12-M10×1.5P - 70 145 M60×2P 52 88 36 46 15 59.6 55
P1875 18 155 215 35 190 - 160 6-M6×1P 125 12-M10×1.5P - 95 164 M85×2P 75 101 36 46 15 84.6 80
P1878 18 155 215 35 190 - 160 6-M6×1P 125 12-M12×1.5P - 99 164 M87×2P 78 101 36 46 15 84.6 83
P2091 21 168 240 35 215 - 180 6-M6×1P 140 12-M12×1.75P - 110 183 M100×2P 91 110 36 46 15 99.6 95
P2093 21 168 240 35 215 - 180 6-M6×1P 140 12-M12×1.75P - 115 183 M103×2P 93 110 36 46 15 99.6 100
P2511 27 191 310 45 275 - 230 6-M6×1P 166 12-M16×2.0P - 140 218 M130×2P 118 135 40 46 15 135 125
P2816 22 201 345 45 298 305 260 6-M8x1.25P 220 12-M12x1.75P 12-M16x2P 195 229 M180x3P 167 180 50 60 15 185 177
P3420 22 223 405 45 360 - 320 6-M8x1.25P 260 12-M20x2.5P - 235 247 M220x3P 205 210 50 60 20 225 210
P2816L 22 217 345 45 298 305 260 6-M8x1.25P 220 12-M12x1.75P 12-M16x2P 195 245 M180x3P 167 180 50 60 15 185 177



MODEL / SPEC. N N1 P P1 Q Q1 R1 S S1 T T1 U U1 V max. V min. W max. W1 W min. X1 Z Piston Stroke (mm)
P0928 44 53 59 4 65 4-M4x0.7P (PCD Ø76) 5 95 PT1/4 105 4 159 137 9.05 -0.95 33.95 M34x1.5P 23.95 32 5 10
P1036 55 64 73 6 80 4-M5x0.8P (PCD Ø88) 5 105 PT3/8 115 6 179 154 10 -5 39 M44×1.5P 24 42 5 15
P1246 64 76 85 4 90 4-M5x0.8P (PCD Ø98) 6 116 PT1/2 115 6 184 172 10 -5 40 M52×1.5 P 25 50 5 15
P1552 73 85 96 4 102 4-M6x1P  (PCD Ø110) 7 135 PT1/2 130 6 196 210 17 -5 47 M58×1.5P 25 56 5 22
P1875 98 108 121 4 131 4-M6x1P  (PCD Ø155) 7 165 PT1/2 160 4 230 235 20 -5 50 M84×2P 25 81 5 25
P1878 98 108 121 4 131 4-M6x1P  (PCD Ø155) 7 165 PT1/2 160 4 230 235 20 -5 50 M84×2P 25 81 5 25
P2091 108 120 138 4 147 4-M6x1P  (PCD Ø165) 7 180 PT1/2 185 6 253 260 25 -5 55 M99×2P 25 96 5 30
P2093 108 120 138 4 147 4-M6x1P  (PCD Ø165) 7 180 PT1/2 185 6 253 260 25 -5 55 M99×2P 25 96 5 30
P2511 148 160 178 5 184 4-M6x1P  (PCD Ø206) 7 230 PT1/2 210 7 304 302 24 -6 55 M134×2P 25 130 6 30
P2816 210 224 244 5 250 6-M6x1P  (PCD Ø275) 7 310 PT3/4 263 - 308 - 24 -6 65 M185x3P 35 180 6 30
P3420 250 264 284 5 290 6-M6x1P  (PCD Ø315) 7 365 PT3/4 330 6 334 - 36 -6 77 M225x3P 35 220 6 42
P2816L 210 224 244 5 250 6-M6x1P (PCD Ø275) 7 310 PT3/4 263 6 324 - 36 -6 77 M185x3P 35 180 6 42



MODEL / SPEC. Max. Speed r.p.m.(min-1) Piston Dia (mm) Moment of Inertia  (kg．m2) Oil Leakage Rate (ι/min) Max. Pressure kgf/cm2 (Mpa) Piston Area (cm2) Max. Operating Force Weight (kg)
Push Side Pull Side Push Side kgf (KN)  Pull Side kgf (KN)
P0928 8000 90 0.008 3 40 (3.9) 54 47.5 2000 (19.6) 1750 (17.2) 6.5
P1036 8000 105 0.012 3 40 (3.9) 70 68 2500 (24.5) 2400 (23.5) 9
P1246 7000 125 0.019 3 40 (3.9) 100 89 3700 (36.2) 3200 (31.3) 11.9
P1552 6200 155 0.053 3.9 40 (3.9) 160 150 5900 (57.8) 5500 (53.9) 17.3
P1875 4700 180 0.096 4.2 40 (3.9) 198 183 7200 (70.5) 6700 (65.6) 26.1
P1878 4700 180 0.096 4.2 40 (3.9) 198 178 7200 (70.5) 6500 (63.7) 25.5
P2091 3800 205 0.16 4.5 40 (3.9) 252 235 9200 (90.1) 8600 (84.3) 33.3
P2093 3800 205 0.16 4.5 40 (3.9) 252 226 9200 (90.1) 8313 (81.5) 32.9
P2511 2800 250 0.5 7 40 (3.9) 348 336 12400 (121.5) 12000 (117.6) 63
P2816 2000 280 1.6 8.4 40 (3.9) 346 317 12200 (119.6) 11200 (109.8) 96.3
P3420 1600 340 3.2 10 35 (3.6) 510 474 15100 (148) 14100 (138.2) -
P2816L 2000 280 1.6 8.4 40 (3.9) 346 317 12200 (119.6) 11200 (109.8) 100.6
Xi Lanh Thủy Lực Tốc Độc Cao Lổ Thông P
