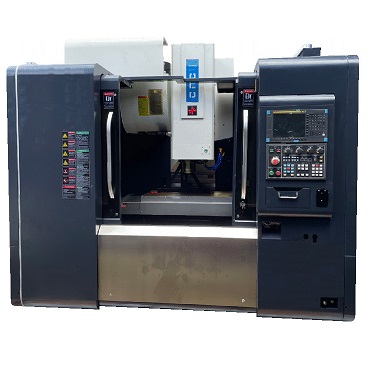

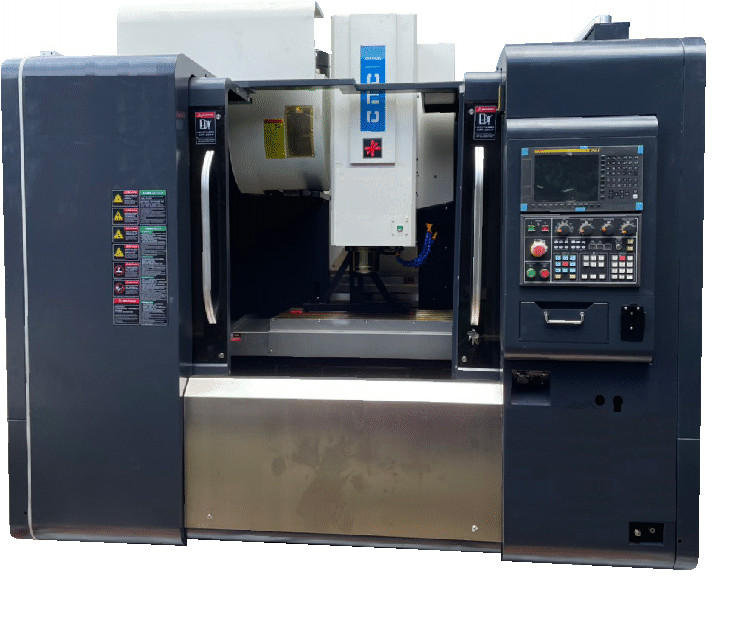

Sản phẩm > Máy Phay CNC VMC

SPECIFICATIONS

Unit

VMC550

VMC650

VMC850

VMC860

VMC1060
Table size mm 700x350 900x400 1050x500 1000x550 1300x600
Table maximum load kg 300 450 600 600 800
X/Y/Z axis travel mm 500x350x500 650x400x500 800x500x550 800x600x600 1000x600x600
Distance between spindle center and column surface mm 419 492 550 590 600
Distance between spindle end face and worktable surface
mm 100-600 100-600 105-655 130-660 180-780
X/Y/Z max. feed speed
 mm/min 10000 10000 10000 10000 10000
X/Y/Z max.rapid traverse m/min 20/20/15 24/24/20 20x20x15 20x20x15 20x20x15
 Max. spindle speed r/min 8000 8000 8000 8000 8000
Spindle taper   BT40 BT40 BT40 BT40 BT40
Spindle motor kw 3.7/5.5 5.5/7.5 7.5/11 7.5/11 15-Nov
X/Y/Z axis servo motor kw 1.0/1.0/1.5 1.0/1.0/1.5 2.0/2.0/2.0 2.0/2.0/2.0 2.5/2.5/2.5
X/Y/Z motor connection   direct direct direct direct direct
X/Y/Z guide rail form   Linear guide rail 2 axis linear guide rail,   1 axis hard rail Hard rail Hard rail Hard rail
Tslot(number-width-pitch)   3-18-105 3-18-125 5-18-90 5-18-100 5-18-120
Repeat positioning accuracy mm ±0.004 ±0.004 ±0.004 ±0.004 ±0.004
Tools type   Armless/arm Armless/arm Armless/arm Armless/arm Armless/arm
Tool magazine capacity   Armless:12/arm:16 Armless:16/arm:16 Armless:16/arm:24 Armless:16/arm:24 Armless:16/arm:24
Max.tool weight kg 7 7 8 8 8
Max. tool length mm 250/350 250/350 250/350 250/350 250/350
Electric capacity KVA 8 10 11 11 16
Machine dimension mm 2380x1950x2300 2300x2200x2400 2880x2450x2700 2900x2400x2800 3340x2800x2700
Machine weight kg 3200 4500 6000 6000 7000
Máy Phay CNC VMC
