Sản phẩm > ASVJC 93°
| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |

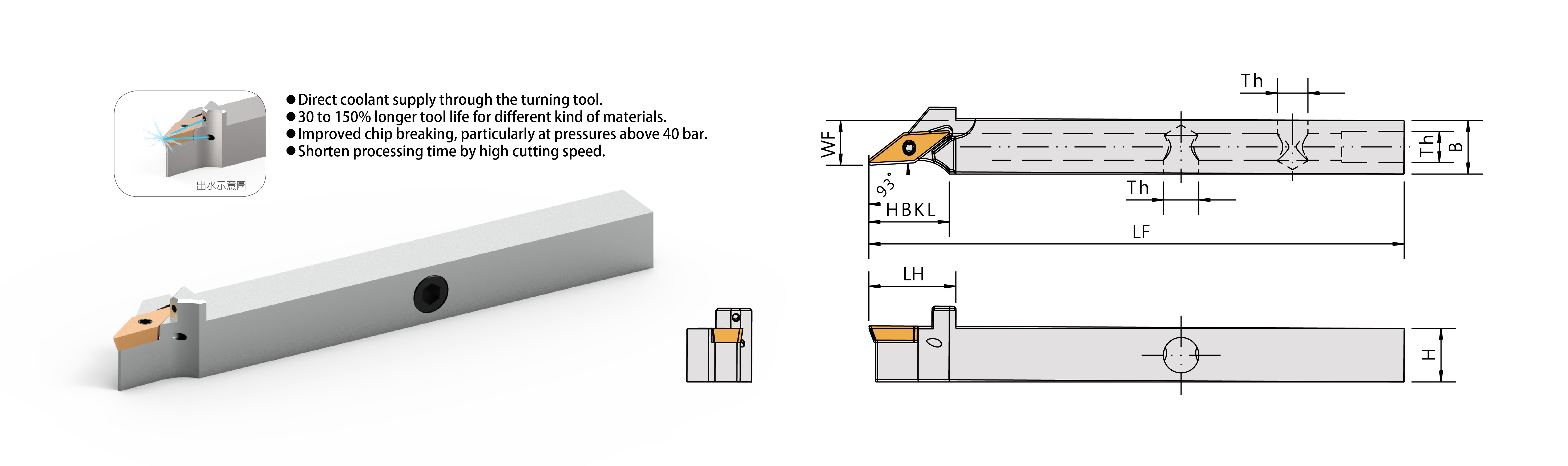

H | B | LF | HBKL | LH | WF | Th |  |
 |
 |
 |
 |
| ASVJCR-1010H11-F08 | VCMT1103 | 10 | 10 | 100 | 17.5 | 19.5 | 8 | 5/16" | CS25060 | CS9-3003 CS9PT5/16 |
CS9NP | FT-7 | LW040 |
| ASVJCR-1212-11NACB | VCMT1103 | 12 | 12 | 140 | - | 27.5 | 12 | 5/16" | CS25060 | CS9-3003 CS9PT5/16 |
CS9NP | FT-7 | LW040 |
| ASVJCR/L-1212H11-F10 | VCMT1103 | 12 | 12 | 100 | 17.5 | 19.5 | 10 | 5/16" | CS25060 | CS9-3003 CS9PT5/16 |
CS9NP | FT-7 | LW040 |
| ASVJCR-1212H11N | VCMT1103 | 12 | 12 | 100 | - | 27.5 | 12 | 5/16" | CS25060 | CS9-3003 CS9PT5/16 |
CS9NP | FT-7 | LW040 |
| ASVJCR/L-1616H11-F14 | VCMT1103 | 16 | 16 | 100 | 18 | 36 | 14 | 1/8" | CS25060 | CS9-3003 CS9PT1/8 |
- | FT-7 | LW040 |
| ASVJCR-1616JX11-F14 | VCMT1103 | 16 | 16 | 120 | 18 | 19.5 | 14 | 1/8" | CS25060 | CS9-3003 CS9PT1/8 |
- | FT-7 | LW040 |
| ASVJCR/L-1616L16-F14CB | VCMT1604 | 16 | 16 | 125 | 18 | 36 | 14 | 1/8" | CS25060 | CS9-3003 CS9PT1/8 |
- | FT-7 | - |
| ASVJCR/L-2020K16-A | VCMT1604 | 20 | 20 | 125 | - | 33 | 25 | 1/8" | CS35115 | CS9-3003 CS9PT1/8 |
- | FT-7 | LW035 |
| ASVJCR-2020K16-F18 | VCMT1604 | 20 | 20 | 125 | 18 | 25 | 18 | 1/8" | CS25060 | CS9-3003 CS9PT1/8 |
- | FT-7 | - |
| ASVJCR/L-2525M16-A | VCMT1604 | 25 | 25 | 150 | - | 33 | 32 | 1/8" | CS35115 | CS9-3003 CS9PT1/8 |
- | FT-7 | LW035 |

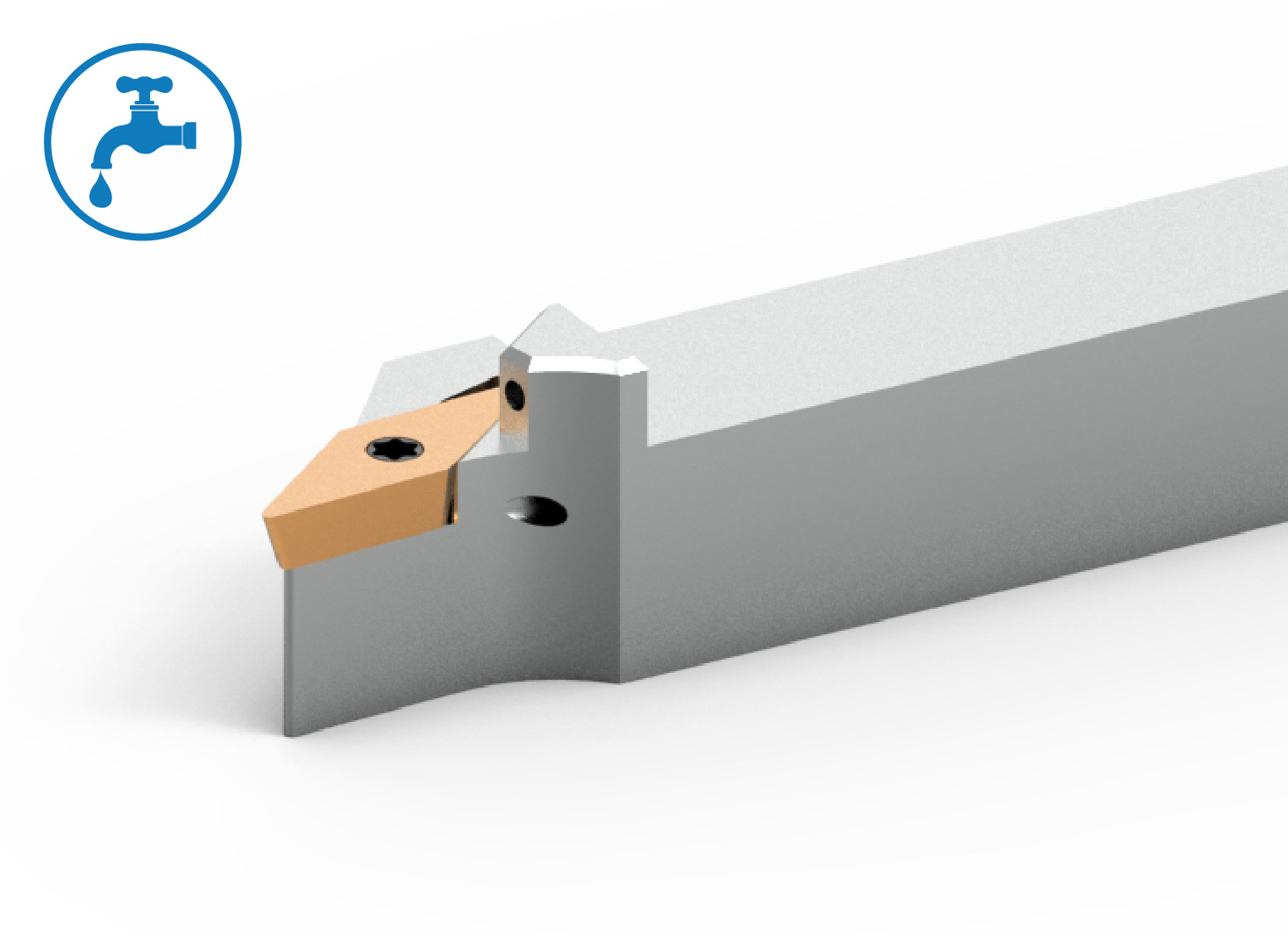

ASVJC 93°
