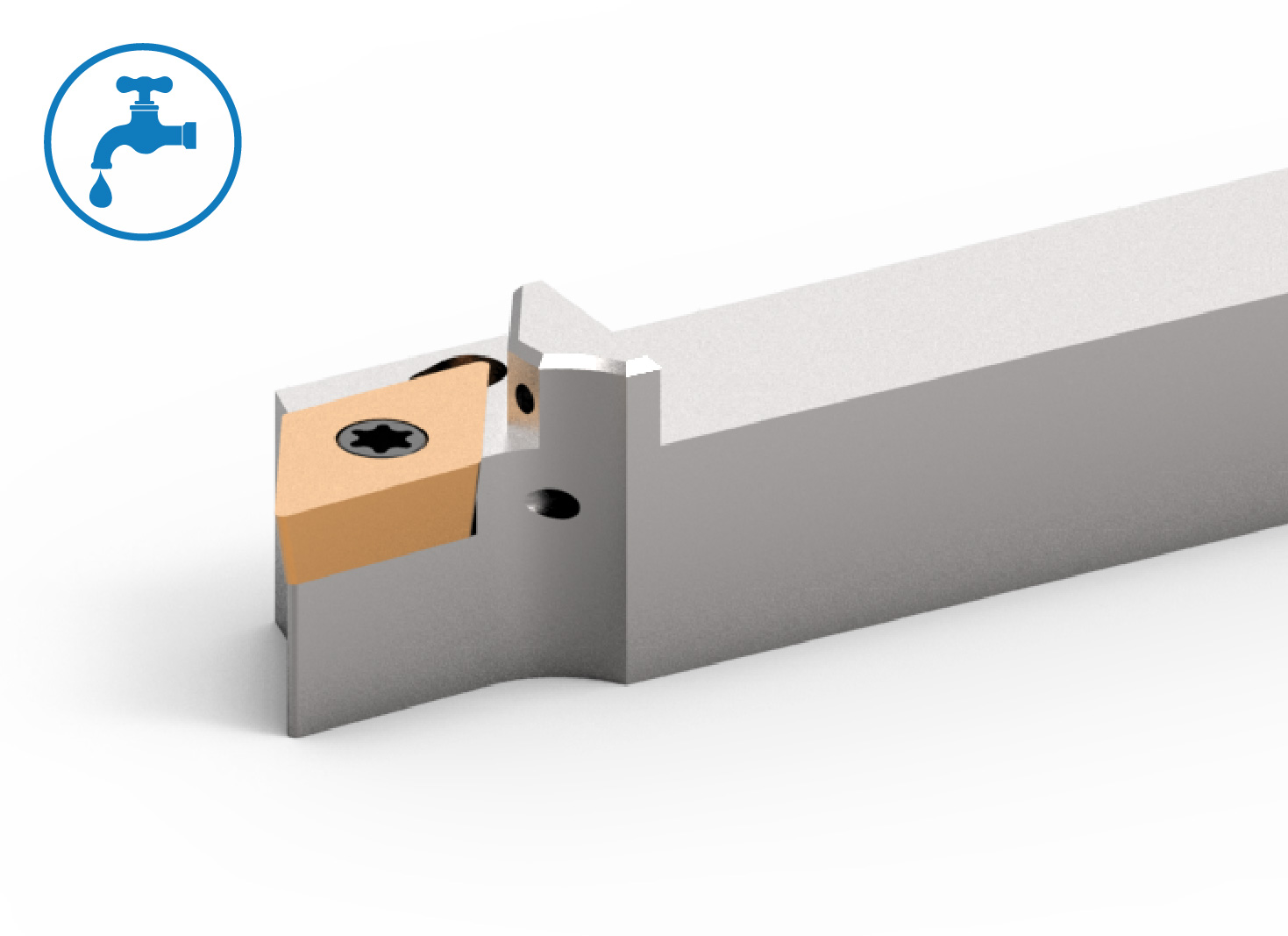

Sản phẩm > ASDJC 93°
Feature
HCP series machine is suitable for steel, aluminum and brass forging process. It is common to see HCP series machine be used in producing hand tools, forged parts for automobile and machine, forged parts for Sanitary and sport equipments.
Specification

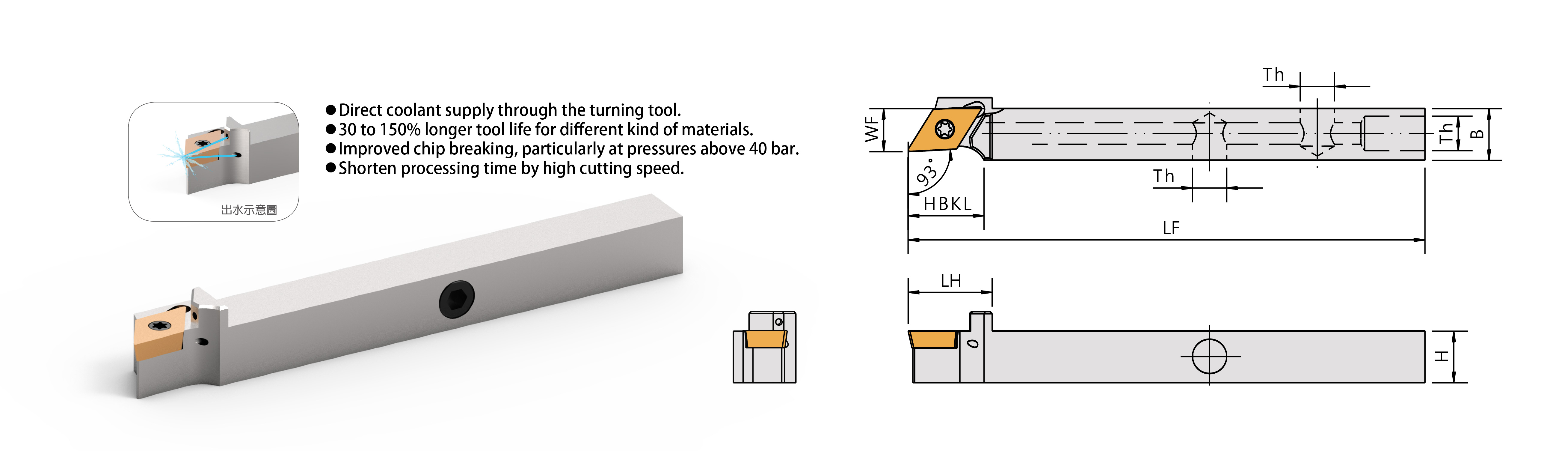

| Order No. | Insert | Dimensions(mm) | Parts | Wrench | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Right/Left |  |
H | B | LF | HBKL | LH | WF | Th |  |
 |
 |
 |
 |
|
ASDJCR/L-1010H07-F08 |
DCMT0702 |
10 |
10 |
100 |
8 |
5/16" |
CS25060 |
CS9-30 03 |
CS9NP |
FT-7 |
|||
|
ASDJCR-1212-11NACB |
DCMT11T3 |
12 |
12 |
140 |
5/16" |
CS35095 |
CS9-30 03 |
CS9NP |
FT-15 |
LW040 |
|||
|
ASDJCR-1212H11N |
DCMT11T3 |
12 |
12 |
100 |
5/16" |
CS35095 |
CS9-30 03 |
CS9NP |
FT-15 |
LW040 |
|||
|
ASDJCR/L-1212H11-F10 |
DCMT11T3 |
12 |
12 |
100 |
10 |
5/16" |
CS35095 |
CS9-30 03 |
CS9NP |
FT-15 |
LW040 |
||
|
ASDJCR/L-1212JX11-F10 |
DCMT11T3 |
12 |
12 |
120 |
19 |
19.5 |
10 |
5/16" |
CS35095 |
CS9-30 03 |
CS9NP |
FT-15 |
LW040 |
|
ASDJCR-1616H11N |
DCMT11T3 |
16 |
16 |
100 |
1/8" |
CS35095 |
CS9-3003 |
- |
FT-15 |
LW040 |
|||
|
ASDJCR-1616H11-F14 |
DCMT11T3 |
16 |
16 |
100 |
14 |
1/8" |
CS35095 |
CS9-3003 |
- |
FT-15 |
LW040 |
||
|
ASDJCR-1616JX11-F14 |
DCMT11T3 |
16 |
16 |
120 |
19 |
19.5 |
14 |
1/8" |
CS35095 |
CS9-3003 |
- |
FT-15 |
LW040 |
|
ASDJCR-2020K11-A |
DCMT11T3 |
20 |
20 |
125 |
1/8" |
CS35095 |
CS9-3003 |
- |
FT-15 |
LW040 |
|||
|
ASDJCR-2525M11-A |
DCMT11T3 |
25 |
25 |
150 |
1/8" |
CS35095 |
CS9-3003 |
- |
FT-15 |
LW040 |
|||
Insert
|
Tolerance Class 精度 |
P | 鋼Carbon Steels |  |
 |
|||||
| M | 不鏽鋼Stainless Steels | |
|||||||
| M級 | K | 鑄鐵Cast Iron | |
||||||
|
Specification 規格 |
Grade 材質 |
Dimensions(mm) 尺寸 |
|||||||
 |
HK1500 | TN2000 | IC | T | d | α | r | ||
| DCMT11T304 |  |
|
12.7 | 3.97 | 4.4 | 7 | 0.4 | ||
| DCMT11T308 | |
|
12.7 | 3.97 | 4.4 | 7 | 0.8 | ||
