Sản phẩm > Đầu Khoan Tự Động

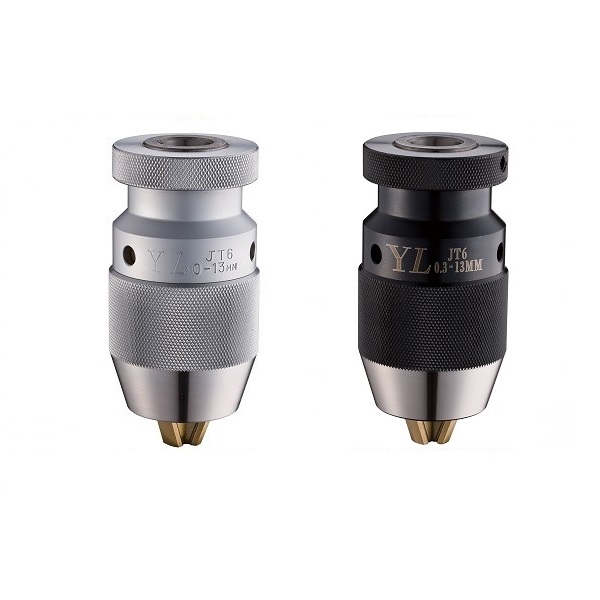

S-TYPE Special heavy duty model # 122
Extremely high accuracy and precision design, suitable for CNC machining and machining
center. All parts are ground, heat treated, surface treated and under specific QC condition.

Description Size Capacity Taper Mount No. Length (mm) Outer Dia.(mm) Weight QTY N.W./G.W.
 \ Code No mm inch DIN or Jacobs Open Closed (g) Pcs/Cu-ft kgs
12200 3S 0.3-3 1/64-1/8 JT0 45 48 25 120 50/0.4 6/7
12201 6S 0.3-6 1/64-1/4 JT1 63 69 34 310 35/0.4 11/12
12201-1 8S 0.3-8 1/64-5/16 JT1 68 76 38 395 35/0.4 14/15
12202-1 10S 0.3-10 1/64-3/8 JT2 80 92 43 610 35/0.4 22/23
12202-4 10S 0.3-10 1/64-3/8 B12 80 92 43 610 35/0.4 22/23
12203-2 13S 0.3-13 1/64-1/2 JT6 90 102 49 920 25/0.4 23/24
12203-4 13S 0.3-13 1/64-1/2 B16 90 102 49 920 25/0.4 23/24
12205-1 16S 3-16 1/8-5/8 JT6 97 110 55 1200 20/0.4 24/25
12205-2 16S 3-16 1/8-5/8 JT3 97 110 55 1200 20/0.4 24/25
12205-4 16S 3-16 1/8-5/8 B18 97 110 55 1200 20/0.4 24/25

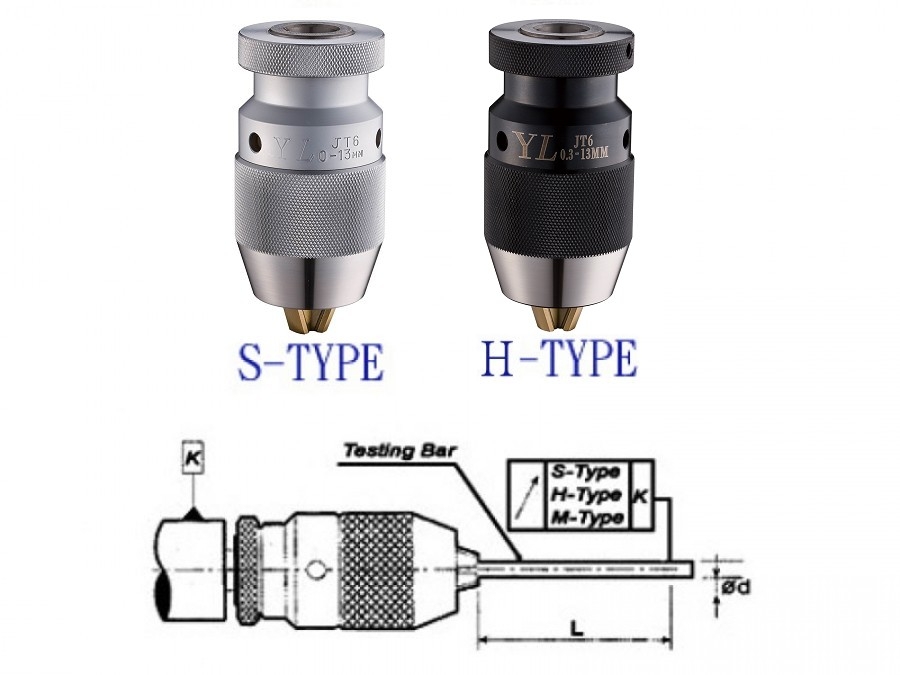

H-TYPE Heavy duty model # 123

Industrial design especially for milling machines and drilling machines.
All hardened parts ensure long life and safety while in operation.

Description Size Capacity Taper Mount No. Length (mm) Outer Dia. Weight QTY N.W./G.W
 \ Code No mm inch DIN or Jacobs Open Closed (mm) (g) Pcs/Cu-ft kgs
12302-1 8H 0.3-8 1/64-5/16 JT1 68 76 38 395 35/0.4 14/15
12303-2 10H 0.3-10 1/64-3/8 JT2 80 92 43 610 35/0.4 22/23
12303-4 10H 0.3-10 1/64-3/8 B12 80 92 43 610 35/0.4 22/23
12304-4 13H 0.3-13 1/64-1/2 B16 90 102 49 920 25/0.4 13/24
12304-5 13H 0.3-13 1/64-1/2 JT6 90 102 49 920 25/0.4 23/24
12304-1 16H 3-16 1/8-5/8 JT6 97 110 55 1200 20/0.4 24/25
12304-2 16H 3-16 1/8-5/8 JT3 97 110 55 1200 20/0.4 24/25
12305-4 16H 3-16 1/8-5/8 B18 97 110 55 1200 20/0.4 24/25
