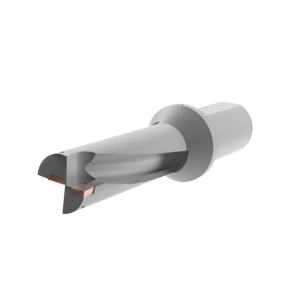

Sản phẩm > Cán dao phay WDX

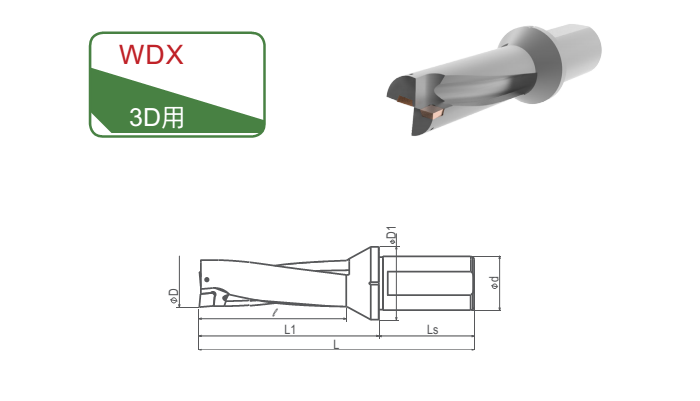

| Order No | Insert | Dimensions | Radial Offset |
Fig | Screw | Wrench | Wrench | ||||||
| Right / Left | D | d | D1 | l | L | L1 | Ls | (Max.) | |||||
| WDX130D3S20 | WDXT042004 | 13.0 | 20 | 28 | 42.0 | 101.0 | 57.0 | 44 | 0.35 | 1 | CS16038 | FT-6 | |
| WDX135D3S20 | 13.5 | 43.5 | 102.0 | 58.5 | 0.30 | ||||||||
| WDX140D3S20 | 14.0 | 45.0 | 104.0 | 60.0 | 0.25 | ||||||||
| WDX145D3S20 | 14.5 | 46.5 | 105.0 | 61.5 | 0.20 | ||||||||
| WDX150D3S20 | 15.0 | 48.0 | 107.0 | 63.0 | 0.15 | ||||||||
| WDX155D3S20 | WDXT052504 | 15.5 | 20 | 30 | 49.5 | 108.5 | 64.5 | 44 | 0.40 | CS20038 | FT-6 | ||
| WDX160D3S20 | 16.0 | 51.0 | 110.0 | 66.0 | 0.40 | ||||||||
| WDX165D3S20 | 16.5 | 52.5 | 111.5 | 67.5 | 0.35 | ||||||||
| WDX170D3S20 | 17.0 | 54.0 | 113.0 | 69.0 | 0.30 | ||||||||
| WDX175D3S25 | 17.5 | 25 | 32 | 55.5 | 126.5 | 70.5 | 56 | 0.25 | |||||
| WDX180D3S25 | 18.0 | 57.0 | 128.0 | 12.0 | 0.20 | ||||||||
| WDX185D3S25 | WDXT063006 | 18.5 | 25 | 33 | 58.5 | 129.5 | 73.5 | 56 | 0.50 | CS22050 | DT-7 | ||
| WDX190D3S25 | 19.0 | 60.0 | 131.0 | 75.0 | 0.45 | ||||||||
| WDX195D3S25 | 19.5 | 61.5 | 132.5 | 76.5 | 0.40 | ||||||||
| WDX200D3S25 | 20.0 | 63.0 | 134.0 | 78.0 | 0.30 | ||||||||
| WDX205D3S25 | 20.5 | 64.5 | 135.5 | 79.5 | 0.30 | ||||||||
| WDX210D3S25 | 21.0 | 66.0 | 137.0 | 81.0 | 0.20 | ||||||||
| WDX215D3S25 | 21.5 | 67.5 | 138.5 | 82.5 | 0.15 | ||||||||
| WDX220D3S25 | 22.0 | 69.0 | 140.0 | 84.0 | 0.10 | ||||||||
| WDX225D3S25 | 22.5 | 70.5 | 141.5 | 85.5 | 0.05 | ||||||||
| WDX230D3S25 | WDXT073506 | 23.0 | 25 | 37 | 72.0 | 146.0 | 90.5 | 56 | 0.70 | CS25055 | DT-8 | ||
| WDX235D3S25 | 23.5 | 73.5 | 147.5 | 91.5 | 0.70 | ||||||||
| WDX240D3S25 | 24.0 | 75.0 | 149.0 | 93.0 | 0.60 | ||||||||
| WDX245D3S25 | 24.5 | 76.5 | 150.5 | 94.5 | 0.50 | ||||||||
| WDX250D3S25 | 25.0 | 78.0 | 152.0 | 96.0 | 0.50 | ||||||||
| WDX255D3S32 | 25.5 | 32 | 41 | 79.5 | 159.5 | 99.5 | 60 | 0.45 | 2 | ||||
| WDX260D3S32 | 26.0 | 81.0 | 161.0 | 101.0 | 0.40 | ||||||||
| WDX265D3S32 | 26.5 | 82.5 | 162.5 | 102.5 | 0.35 | ||||||||
| WDX270D3S32 | 27.0 | 84.0 | 164.0 | 104.0 | 0.25 | ||||||||
| WDX275D3S32 | 27.5 | 85.5 | 165.5 | 105.5 | 0.20 | ||||||||
| WDX280D3S32 | 28.0 | 87.0 | 167.0 | 107.0 | 0.15 | ||||||||
| WDX285D3S32 | 28.5 | 88.5 | 168.5 | 108.0 | 0.10 | ||||||||
| WDX290D3S32 | WDXT094008 | 29.0 | 32 | 50 | 91.0 | 172.0 | 112.0 | 60 | 1.00 | CS35095 | DBIT-T15 | ||
| WDX295D3S32 | 29.5 | 92.5 | 173.5 | 113.5 | 0.95 | ||||||||
| WDX300D3S32 | 30.0 | 54 | 94.0 | 178.0 | 118.0 | 0.90 | |||||||
| WDX310D3S32 | 31.0 | 97.0 | 181.0 | 121.0 | 0.80 | ||||||||
| WDX320D3S32 | 32.0 | 100.0 | 184.0 | 124.0 | 0.70 | ||||||||
| WDX300D3S40 | 30.0 | 40 | 94.0 | 188.0 | 118.0 | 70 | 0.90 | ||||||
| WDX310D3S40 | 31.0 | 97.0 | 191.0 | 121.0 | 0.80 | ||||||||
| WDX320D3S40 | 32.0 | 100.0 | 194.0 | 124.0 | 0.70 | ||||||||
| WDX330D3S40 | 33.0 | 103.0 | 197.0 | 127.0 | 0.55 | ||||||||
| WDX340D3S40 | 34.0 | 106.0 | 200.0 | 130.0 | 0.45 | ||||||||
| WDX350D3S40 | 35.0 | 109.0 | 203.0 | 133.0 | 0.35 | ||||||||
| WDX360D3S40 | 36.0 | 112.0 | 206.0 | 136.0 | 0.20 | ||||||||
| WDX370D3S40 | WDXT125012 | 37.0 | 40 | 49.5 | 116.0 | 216.0 | 146.0 | 70 | 1.00 | CS50100 | DBIT-T20 | ||
| WDX380D3S40 | 38.0 | 119.0 | 219.0 | 149.0 | 1.00 | ||||||||
| WDX390D3S40 | 39.0 | 122.0 | 222.0 | 152.0 | 0.90 | ||||||||
| WDX400D3S40 | 40.0 | 125.0 | 225.0 | 155.0 | 0.80 | ||||||||
| WDX410D3S40 | 41.0 | 128.0 | 228.0 | 158.0 | 0.70 | ||||||||
| WDX420D3S40 | 42.0 | 131.0 | 231.0 | 161.0 | 0.60 | ||||||||
| WDX430D3S40 | 43.0 | 134.0 | 234.0 | 164.0 | 0.50 | ||||||||
| WDX440D3S40 | 44.0 | 137.0 | 237.0 | 167.0 | 0.50 | ||||||||
| WDX450D3S40 | 45.0 | 140.0 | 240.0 | 170.0 | 0.40 | ||||||||
Cán dao phay WDX
